HIT38315

HSG-8315BH HV Hi Res Ultra Fast Gyro Servo

Product Info
HITEC

HIT38315

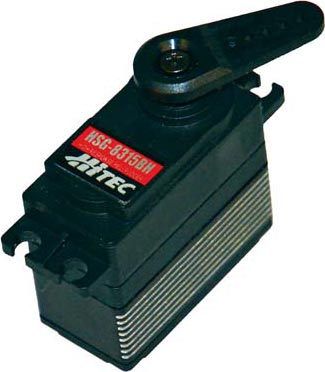

HSG-8315BH HV Hi Res Ultra Fast Gyro Servo
By HITEC
$74.99 CAD   128.99
Save $54.00 (42%)

FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Servos Digital
But only from... HITEC
All items from... HITEC


 Inventory Status Legend
StockStock availability for on-line ordering
0
$74.99
Warehouse ?
StockStock availability for pick up
0
$74.99
Warehouse ?
0
$74.99
Store - Stratford ?
0
$74.99
Store - Edmonton ?
0
$74.99
Store - Mississauga ?
0
$74.99
Store - Ottawa ?
0
$74.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
SPECIFICATIONS
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
38 mm
Height:
60 g
Weight:
6.0 - 7.4
Voltage Range:
4.3 kg-cm (60 oz-in)
Torque @ 6.0V:
0.05 sec/60°
Speed @ 6.0V:
5.3 kg-cm (74 oz-in)
Torque @ 7.4V:
0.04 sec/60°
Speed @ 7.4V:

FEATURES
  • Ultra-fast Tail Rotor Servo
  • High Performance, Coreless Motor
  • High Resolution, Low Dead Band Curcuitry
  • Karbonite/Aluminum Gear Train
  • Remarkable 200~560 Hz Refresh Rate
  • Equipped with the Industry Standard 25-tooth Spline

Our new supersonic helicopter servo is fast and furious fun! Built with ultra-speed in mind, the HSG-8315BH has a robust Karbonite and aluminum hybrid gear train, high-performance coreless motor and high resolution, low dead band circuitry. It is the perfect tail rotor servo for 500+ size electric and 50-size and up gas pilots whose maneuvers and aerobatics demand the utmost precision and acceleration. Rated at 7.4 volts for 2S LiPo operation with a 560Hz refresh rate, the HSG-8315BH rivals anything like it on the market. Throw in its 25-tooth standard spline and dual ball bearings and it is sure to become one of your favorite servos!
