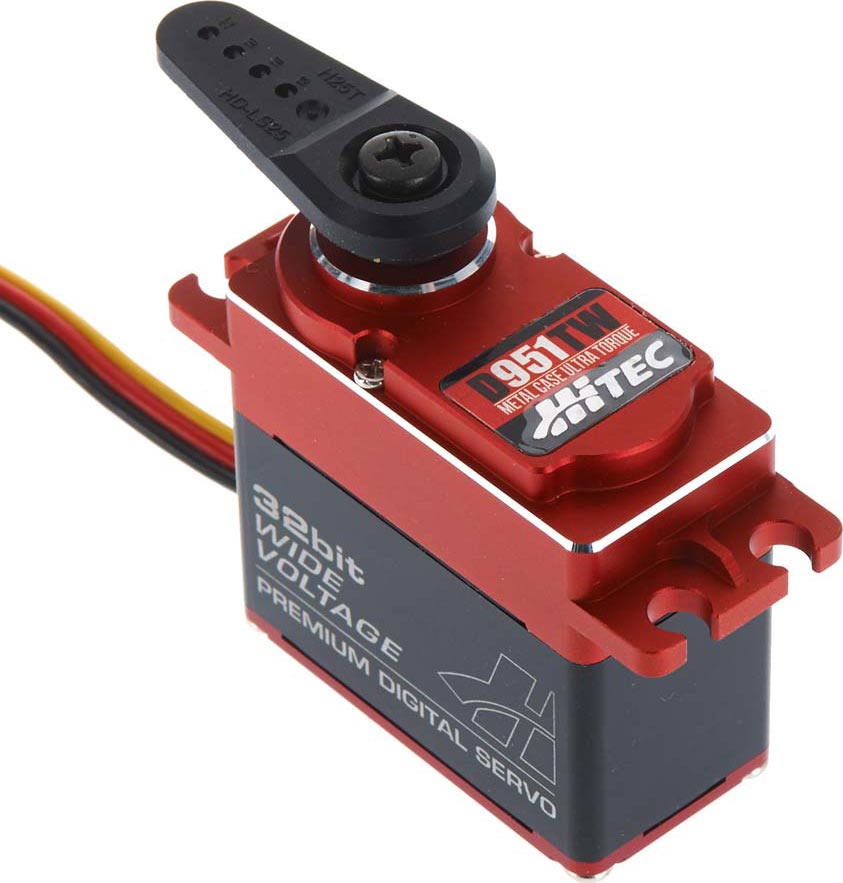

D951TW 32-Bit Metal Case High Torque Titanium Gear Servo
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
25 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
38 mm
Height:
68 g
Weight:
Titanium
Geartrain:
4.8 - 6.0 - 7.4 v
Voltage Range:
21 kg-cm (292 oz-in)
Torque @ 4.8V:
0.23 sec/60°
Speed @ 4.8V:
29 kg-cm (403 oz-in)
Torque @ 6.0V:
0.17 sec/60°
Speed @ 6.0V:
35 kg-cm (486 oz-in)
Torque @ 7.4V:
0.14 sec/60°
Speed @ 7.4V:
FEATURES
- High Response Circuitry
- Wide Voltage Capabilities
- 32-Bit MCU Technology
- Full Programmability
- Smart Sense Technology for Servo Analytics
- 25-Tooth Output Spline
Hitec’s D-Series servo line sets new standards for advanced, programmable technology. Powered by our 32-bit MCU (Microcontroller Unit) and 12-bit ADC (Analog to Digital Converter) industrial science, these powerhouses dominate the servo arena. Their potent combination of wide voltage capabilities, high resolution, rapid response, and patented Smart Sense technology brings maximum performance to all radio control applications. The members of this particular D-Series group are all designed with our extremely durable titanium gears; and the D941TW, D946TW and D951TW trio boast full metal cases. When you demand ultimate reliability and unprecedented advanced engineering, look to the power of the D-Series servos!
