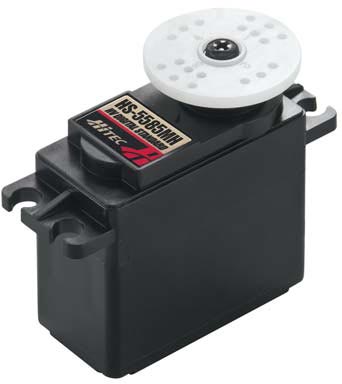

HS-5585MH Coreless Hi-Torque MG 0.14/236oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
Digital
Type:
24 Tooth
Output Spline:
40 mm
Length:
20 mm
Width:
38 mm
Height:
60 g
Weight:
Metal
Geartrain:
6.0 - 7.4 v
Voltage Range:
14 kg-cm (194 oz-in)
Torque @ 4.8V:
0.17 sec/60°
Speed @ 4.8V:
17 kg-cm (236 oz-in)
Torque @ 6.0V:
0.14 sec/60°
Speed @ 6.0V:
FEATURES
Increase your performance not your budget with the high voltage, high torque, digital HS-5585MH. Featuring a high performance coreless motor, heavy-duty metal gears and dual ball bearings, the HS-5565MH is rated for 7.4 volt, 2S LiPo operation. The HS-5585MH, supplies your 1/10th monster trucks to 1/8th scale buggies and truggies and high performance airplanes up to 35 percent with outstanding strength and precision.
