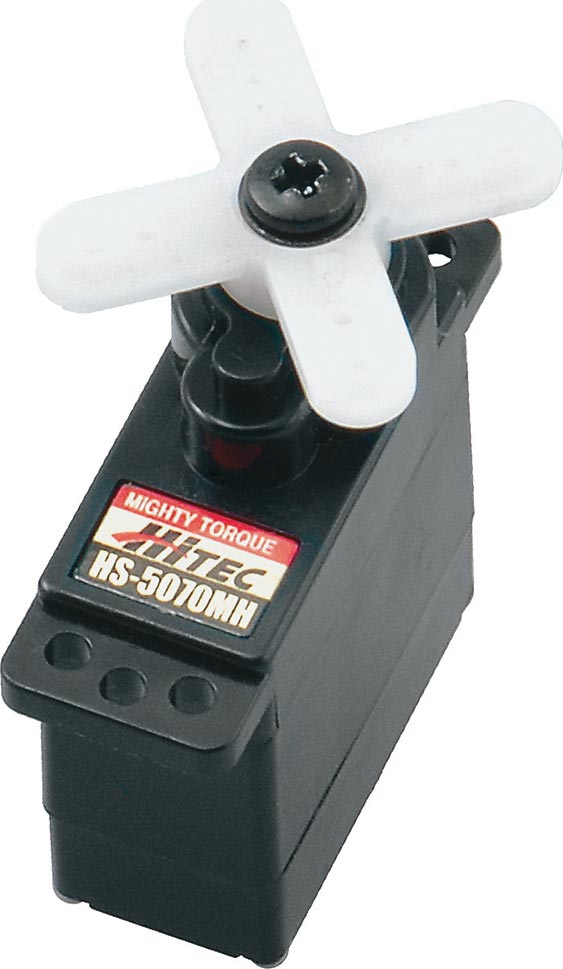

HS-5070 Dig Ultra Torque Feather 0.17/53.06oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
23 Tooth
Output Spline:
23.6 mm
Length:
11.6 mm
Width:
28.1 mm
Height:
14.2 g
Weight:
Metal
Geartrain:
6.0 - 7.4 v
Voltage Range:
3 kg-cm (42 oz-in)
Torque @ 6.0V:
0.14 sec/60°
Speed @ 6.0V:
3.7 kg-cm (53 oz-in)
Torque @ 7.4V:
0.12 sec/60°
Speed @ 7.4V:
FEATURES
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
Our new strong and speedy digital HS-5070MH possess the performance qualities necessary for the new class of 42-48 inch performance 3D aircraft and 450-size helicopters. Featuring Hitec’s durable metal gears, cored motors, top ball bearings and Generation 1 circuitry, these new additions to our vast servo family will have all your planes and helis flying with remarkable precision and power. The programmable HS-5070MH delivers an impressive 53 oz.-in. of torque at 7.4 volts. Fast, forceful, fantastic! We Are Hitec!
PRODUCT RESOURCES
669962350709 0669962350709
HRC35070
