HBS116155

D216 1/10 Scale 2WD Racing Buggy Kit

Product Info | Required Items | Replacement Parts
RESOURCES

Items Required to Complete (9)
Replacement Parts (5)
HOT BODIES

HBS116155
D216 1/10 Scale 2WD Racing Buggy Kit
By HOT BODIES

Overstock! 1 Only Available @
$399.99 CAD    514.99
Save $115.00 (22%)

Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric 2WD Buggy Kits
But only from... HOT BODIES

Overstock Clearance Sale

Please note: This item is currently in our Overstock Clearance Sale and the special price shown is only valid for the quantity shown in that specific location on a first come, first served basis. Backorders will not be accepted at clearance pricing. The quantity shown is approximate and does not reflect quantities that may be in process with other customer orders. We apologize to those customers who may miss out, and thank you for your understanding.
Click for more overstock deals...

 Inventory Status Legend
Stock availability for on-line ordering
1
$399.99
Overstock! 1 Only Available @
Warehouse ?
Stock availability for pick up
1
$399.99
Overstock! 1 Only Available @
Warehouse ?
0
$493.99
Store - Charlottetown ?
0
$493.99
Store - Edmonton ?
0
$493.99
Store - Mississauga ?
0
$493.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
398 mm
Length:
250 mm
Width:
135 mm
Height:
2+ channel
Radio Requirements:
High torque metal gear
Servo Requirements:
540 size
Motor Requirements (brushless):
To match selected motor
ESC Requirements:
2s shorty form factor li-po
Battery Requirements:
To suit selected battery
Charger Requirements:

PRODUCT RESOURCES
VENDOR TECHNOTES

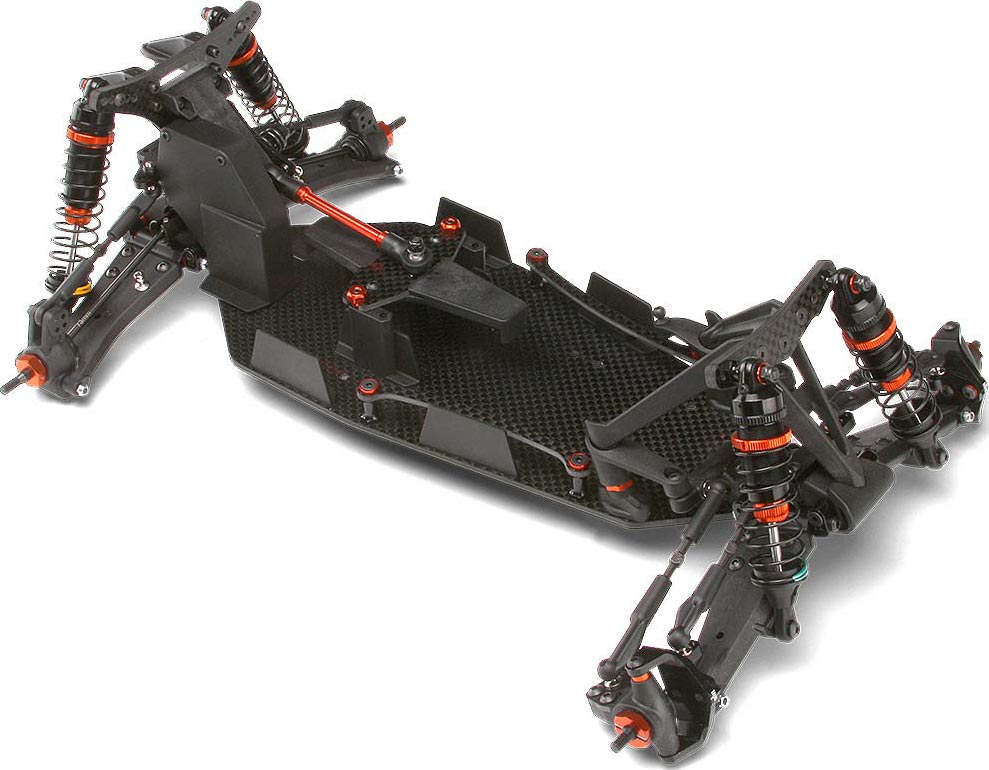

          This is the Radio Controlled. Electric Powered, 1/10 scale
2WD D216 Buggy Kit from Hot Bodies.

FEATURES: Chassis: Carbon fiber 0.12" (3mm) thick
Drive: Rear wheel
Transmission: Single speed, 3-gear
Differential: Rear sealed and tunable
Suspension: Innovative suspension arm/aluminum hinge boss design
Shocks: Oil filled 12mm Big Bore V2 with aluminum shock caps and
shock bellow bladder
Shock Towers: 0.16" (4mm) thick carbon fiber, with triangulated
composite shock tower mounts for increased strength
Battery Orientation: Multiple position
Body: D 216 buggy body, multiple wing height mounting positions
Wheels: Dish type 2.2" (56mm) diameter, front 0.94" (24mm) wide,
rear 1.5" (38mm) wide, white in color
Steering: Bell crank type with full ball bearings, adjustable
steering servo mount
Caster: Adjustable 2-pc blocks, caster/toe-in refers to the
angle of the front suspension when viewed from the side of the car
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Warranty Period: Two year limited, valid only in the US, Canada and
South America
Spur Gear: 78 tooth 48 pitch

INCLUDES: D216 Buggy Kit with Body, Shocks, Wheels, Ball Bearings, 78T Spur
Gear, Decal Sheet, Instructions, #1000 bottle of Silicone Diff Oil,
#500 bottle of Shock Oil

REQUIRES: Radio: 2-channel with high-torque steering servo
Motor: Brushless recommended, 540 size
ESC: To match selected motor
Pinion Gear: 48P, number of teeth to match selected motor and track
conditions
Battery: 2S shorty LiPo pack recommended
Tires: 1/10 scale buggy
Transmitter Batteries, Building and Track Equipment

SPECS: Vehicle-
Length: 15.7" (398mm)
Width: 9.8" (250mm)
Height: 5.3" (135mm)
Body-
Length: 10" (254mm)
Width: 4.75" (121mm)
Height: 2.8" (72mm)

COMMENTS: For Replacement Ball Bearings use:
Qty. Size Location Qty. Bearing Set
2 8x14mm Differential 1 DTXC1583
2 5x11mm Gearbox 1 DTXC1547
2 5x10mm Gearbox 1 DTXC1535
4 5x10mm Steering 2 DTXC1535
2 10x15mm Rear Hubs 1 DTXC1595
2 5x11mm Rear Hubs 1 DTXC1547
4 5x10mm Front Hubs 2 DTXC1535
