SPECIFICATIONS
67 in
Wingspan:
825 sq in
Wing Area:
10.3-11.5
Weight:
7 channel minimum
Receiver Requirements:
7 (6 for electric set-up)
Servo Requirements:
.60-.91 cu in
2-Stroke Engine Requirements:
1.00-1.25 cu in
4-Stroke Engine Requirements:
15 cc
Gasoline Engine Requirements:
60 Size brushless motor
Brushless Motor Requirements:
80 Amp
ESC Requirements:
6S-5000mAh
Battery Requirements:
FEATURES
Printed, flat finish UltraCote® covering with extensive panel line detail

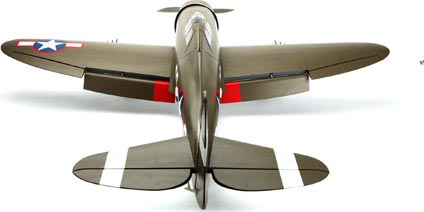

Operational flaps provide an enhanced appearance and flight envelope
Accurate representation of the scale outline
Internal flap and elevator linkages

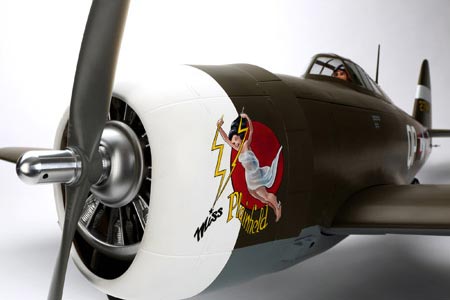

Fiberglass cowl with dummy engine, plus intercooler exhaust doors, turbo and waste gate exhaust detail
Fully sheeted, airfoiled tail surfaces
Gear doors, scale tires and 8-spoke wheels hubs included

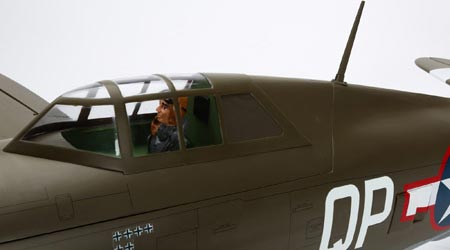

Wing guns and removable radio antenna detail included
Two-piece, plug-in wings for easy transport

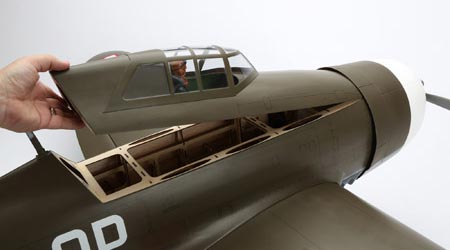

Large, removable top hatch with magnetic closure
Includes four scale nose art and identification number sets

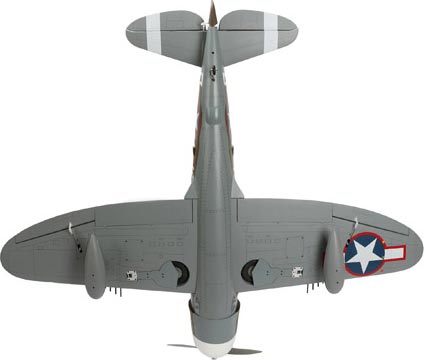

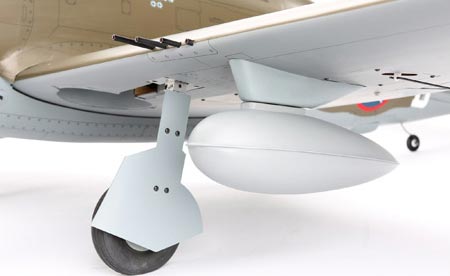

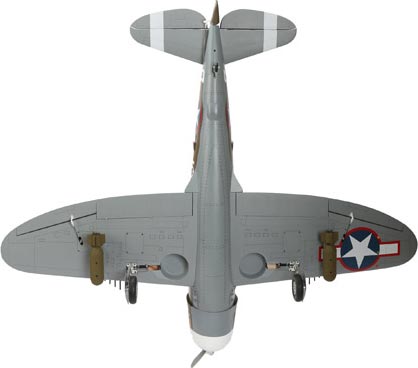

Wing pylons with dummy wing tanks & bombs
Optional electric retracts
Machined aluminum spinner nut included
Aptly named for its undisputable ability to deliver total devastation from a dive, Republic produced thousands of the P-47s that served in the front lines around the globe during America's involvement in WWII.

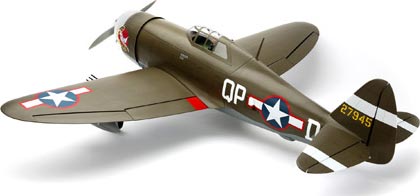

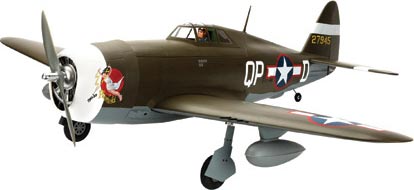

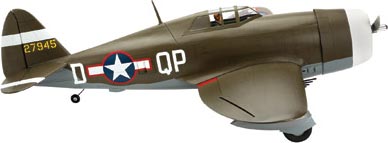

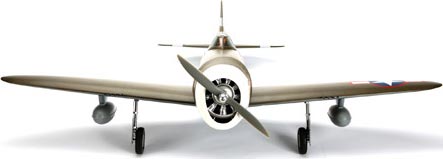

The Hangar 9® P-47D-1 60 ARF is a remarkable tribute for the scale RC pilot who wants an authentic warbird sized to pack a punch, yet handles well during critical moments, such as those during landing or in high-speed maneuvers. Fully-sheeted construction complements the accurate scale outline while flat-finish printed UltraCote® covering offers amazing detail that's easy to maintain. Plug-in wings make transport and storage fast and convenient. No matter what power system you favor, all the hardware is included to go gas, glow or electric, plus a large hatch provides quick access to critical components. Furthermore, four sets of graphics and group numbers are included so the squadron at your RC field can perform in the air or on the flighline with distinction.
Internal Combustion
- 5+ channel transmitter and receiver radio system (6+ channels for optional retract operation)
- Receiver Pack
- (7) standard servos
- Engine
- Ignition battery
- Propeller
Electric Power
- 5+ channel transmitter and receiver radio system (6+ channels for optional retract operation)
- (6) standard servos
- 60-size brushless outrunner motor
- Speed Control
- Propeller
- Flight battery pack
- Charger for flight battery
