HAN2370

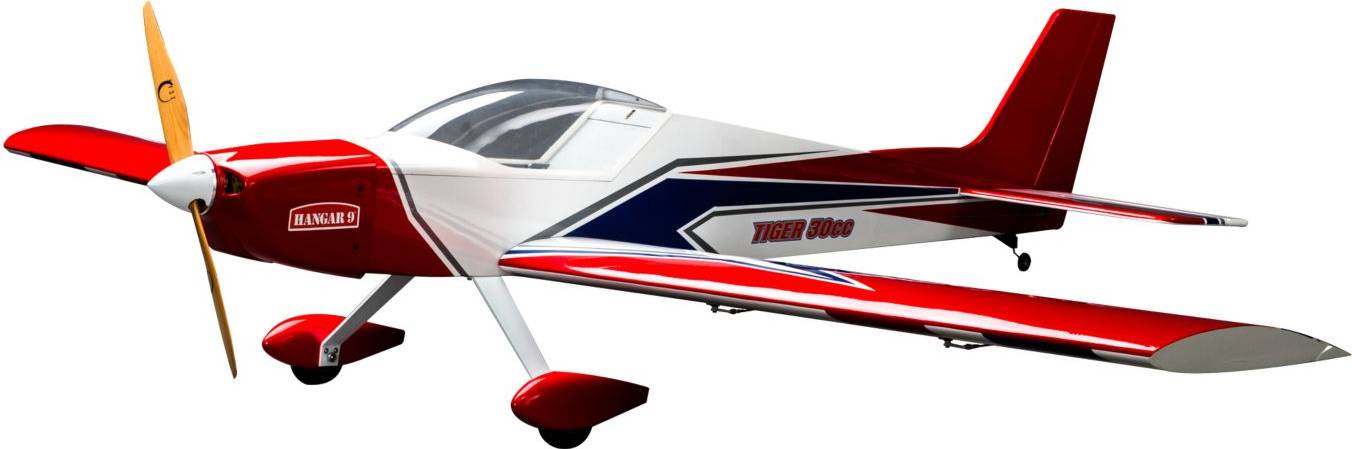

Tiger 30cc ARF Red/White/Blue

Product Info | Required Items | Replacement Parts
HANGAR 9

HAN2370
Tiger 30cc ARF Red/White/Blue
By HANGAR 9
$549.99 CAD   579.99
Save $30.00 (5%)

FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... ARF Sport R/C Aircraft Giant Scale
But only from... HANGAR 9
All items from... HANGAR 9


 Inventory Status Legend
StockStock availability for on-line ordering
1
$549.99
Warehouse ?
StockStock availability for pick up
1
$549.99
Warehouse ?
0
$549.99
Store - Stratford ?
1
$549.99
Store - Edmonton ?
0
$549.99
Store - Mississauga ?
1
$549.99
Store - Ottawa ?
1
$549.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Tiger 30cc Tailwheel Assembly
$12.99

Tiger 30cc Wing Set
$239.99

Tiger 30cc Cowling
$64.99

Tiger 30cc Fuel Tank; 14Oz
$19.99
Tiger 30cc Fuselage
$209.99

Tiger 30cc Wheel Pants
$54.99

Tiger 30cc Main Landing Gear
$42.99

Tiger 30cc Decal Set
$16.99
SPECIFICATIONS
90 in
Wingspan:
1417.5 sq in
Wing Area:
26 - 29 oz/sq ft
Wing Loading:
78 in
Length:
16 - 18 lbs
Weight:
6 or more Channels
Radio Requirements:
(5-8) Standard High-Torque Servos
Servo Requirements:
30 cc
2-Stroke Engine Requirements:
30 cc
Gasoline Engine Requirements:
160-180 Brushless Outrunner Motor
Brushless Motor Requirements:
90-Amp+
ESC Requirements:
(2) 6S 22.2V 5000-7000mAh LiPo Batteries
Electric Flight Battery Requirement:

FEATURES
  • Lightweight balsa and plywood construction for a strong and lightweight airframe

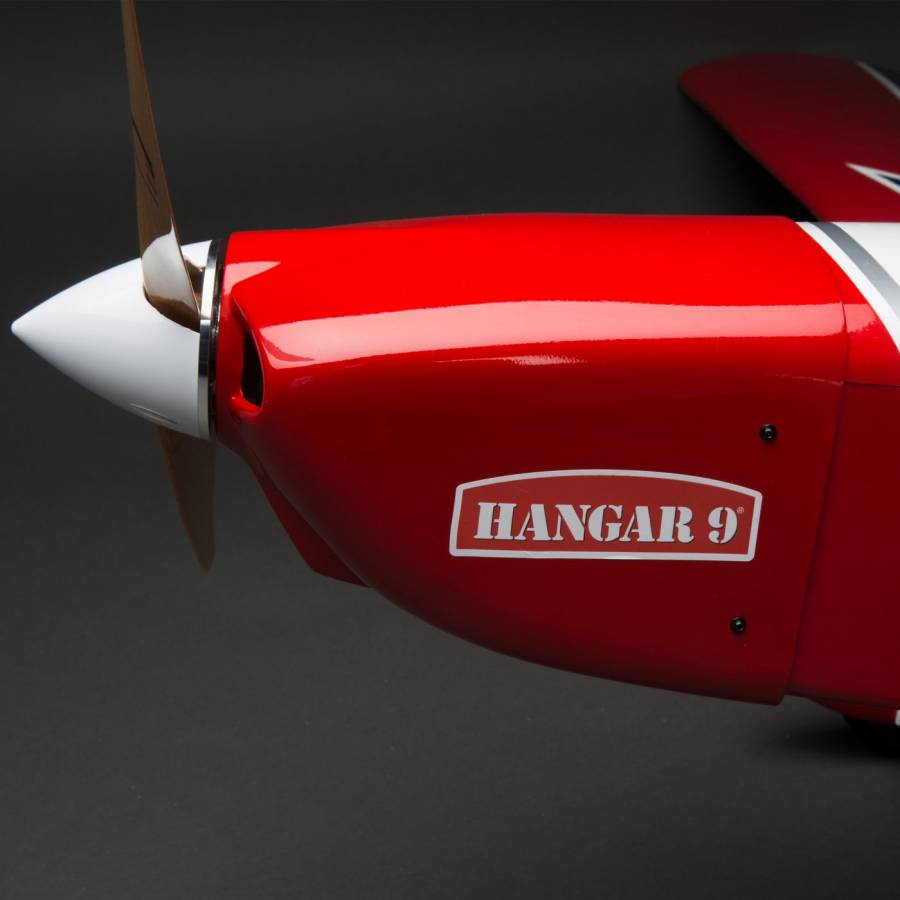

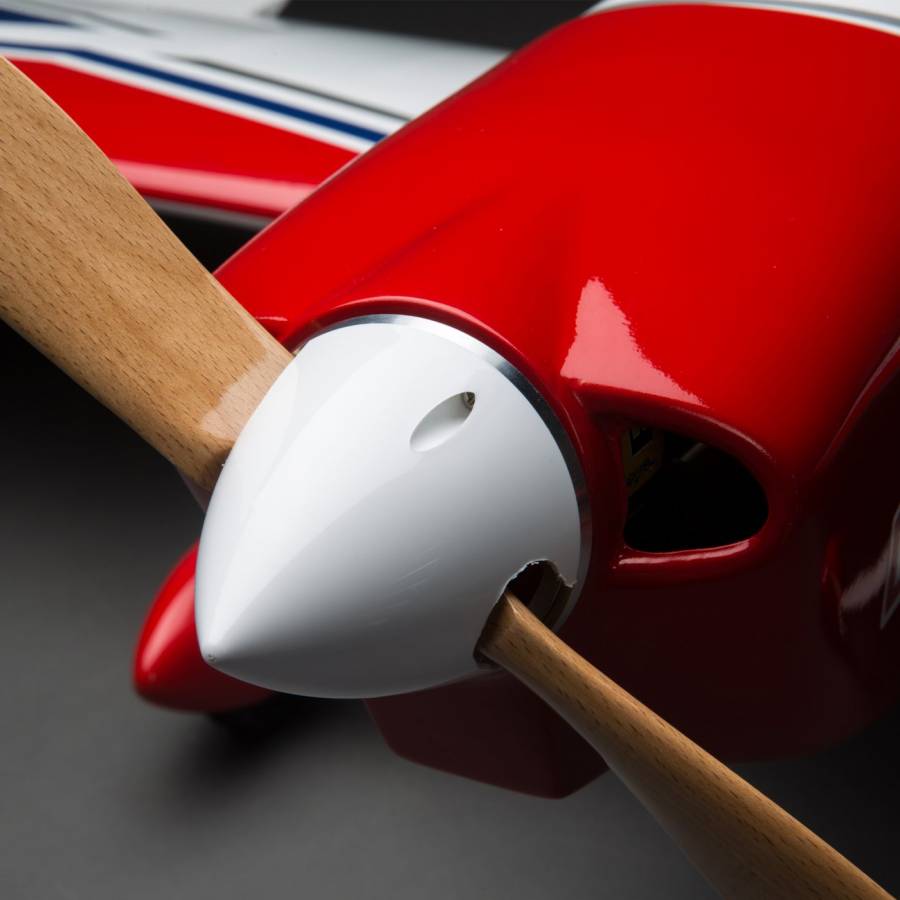

  • Fiberglass cowl requires no finishing by the customer
  • One-piece painted aluminum landing gear attaches to fuselage
  • Finished fiberglass wheel pants matches the covering perfectly
  • Large canopy hatch provides easy access to radio gear, batteries and fuel system
  • Bolt-on two-piece wings for easy transportation and handling

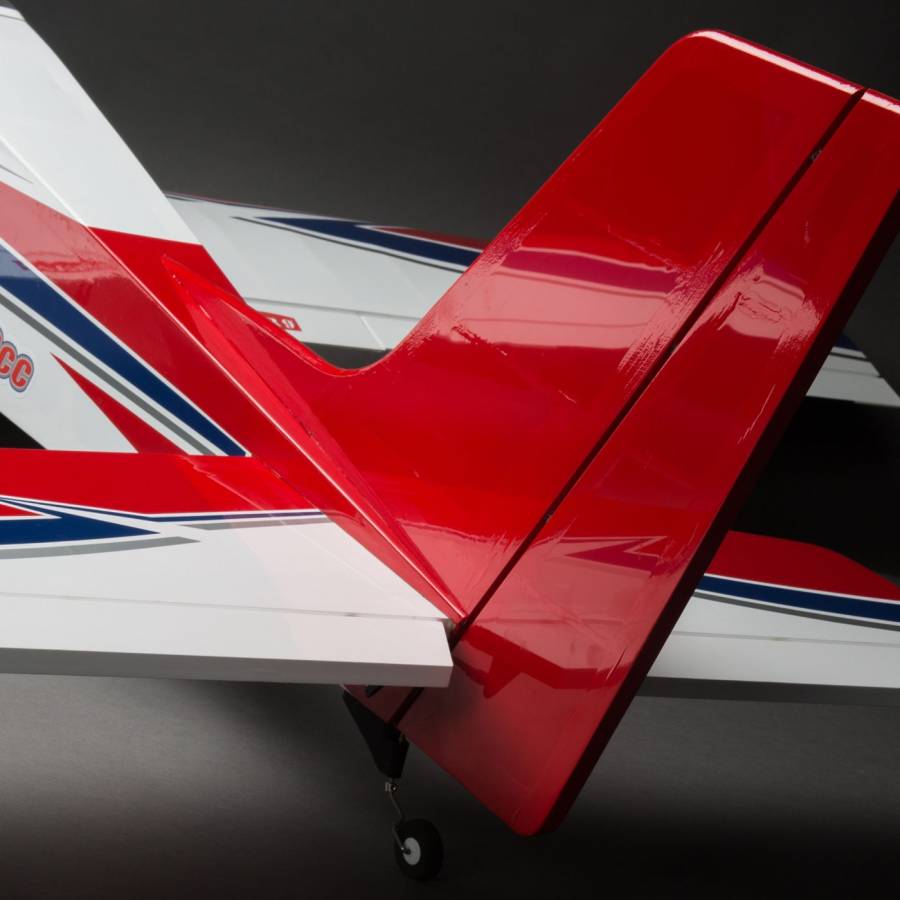

  • Steerable tail wheel
  • Taildragger gear configuration
  • Clear canopy
  • Full-span ailerons with option for functional flaps
  • Pre-hinge control surfaces help you save on build time
  • Included decal sheet allows you to customize the look of your aircraft
  • Complete hardware package included
  • Designed to accept gas/petrol engines and electric motors

 For the balsa enthusiast, the new Hangar 9® Tiger 30cc delivers the classic looks and performance of the popular Tiger series in a larger 30cc platform for common gas engines and electric power systems. Taking its cues from the Tigers of old, this sport plane is streamlined with a complete fiberglass cowl requiring no additional work to get ready for the runway. A smart red, white, and blue color scheme highlights the modern sport plane's looks with nods to its rich past.

Bigger than the Tigers of yesterday, it only needs a 30cc-class gas/petrol engine to deliver outstanding performance. Lightweight design, combined with high-grade balsa and plywood construction, is used with laser accuracy to provide everything you could want in a giant scale sport model. The large canopy hatch provides easy access to radio gear, batteries and fuel system while the pre-hinge control surfaces save you time when building. The bolt-on two-piece wings provide easy transportation and handling. If you're looking for a big sport airplane with ties to the radio control flying past and can do it all with a modern flair, the Tiger 30cc airplane is for you.

The Tiger 30cc ARF is part of the complete line of top-quality Hangar 9® aircraft and accessories. All are engineered and crafted to exacting standards and feature the finest components and materials. Plus, every Hangar 9 product comes with the after-sale service and technical support you need to succeed.

Needed to Complete

For Gas Engine or Electric Motor Setup

  • (1) Full-range, 6+ channel radio system
  • (5-8) Standard High-Torque Servos
  • (5-8) 9-18 Inch Heavy Duty Servo Extensions
  • (1) Battery for receiver
  • (1) 3 inch spinner
  • Tools and adhesives (see manual for complete list)

For Gas Setup

  • (1) DLE-35RA or similarly sized 30cc 2 or 4 stroke gas engine
  • (1) Battery for electronic ignition
  • (1) 18x10 Wood Propeller
  • Gas tubing and fuel filler

For Electric Setup

  • (1) 160-180 Brushless Outrunner Motor
  • (1) 90-Amp+ Electronic Speed Control
  • (2) 6S 22.2V 5000-7000mAh LiPo Batteries
  • (1) 18x10 Electric Propeller

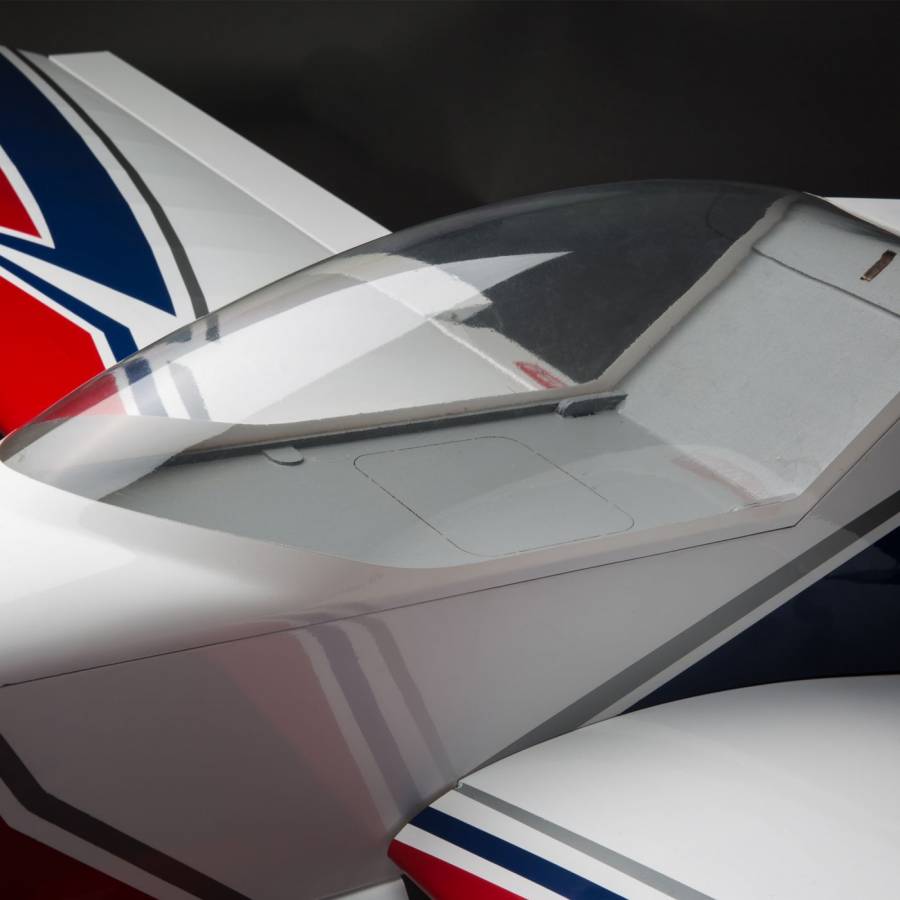

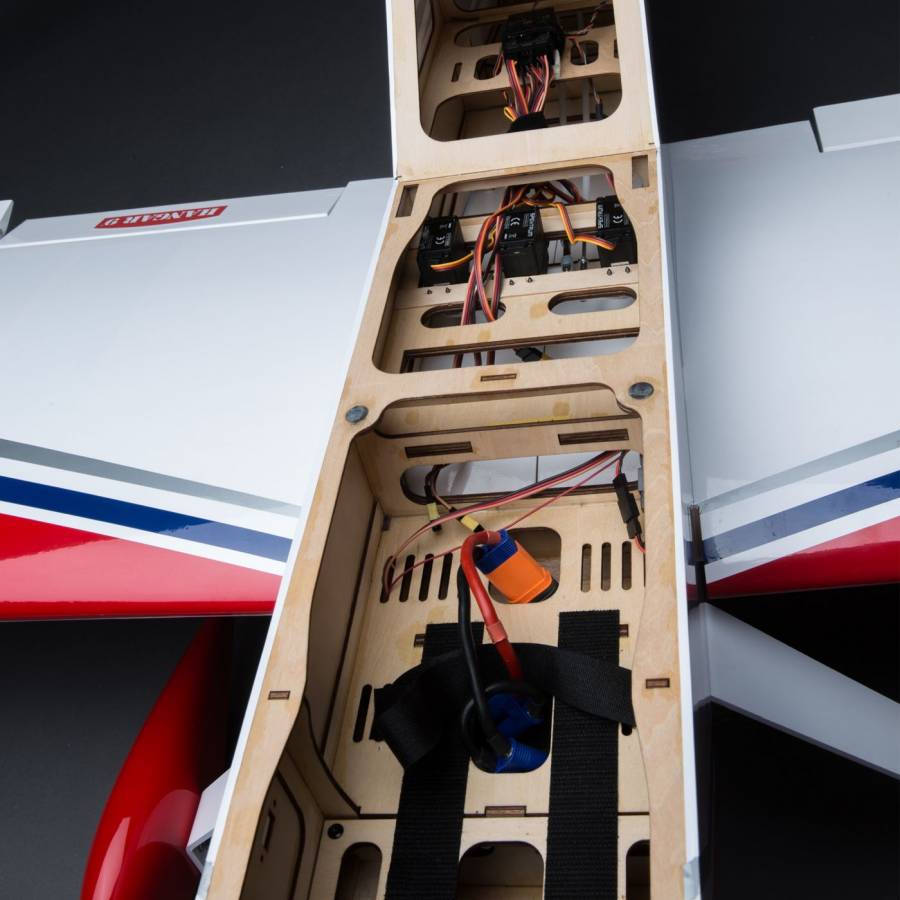

Easy Access and Assembly

The convenient top hatch is large for easy access to vital components such as the electronics and batteries. The two-piece bolt-on wing makes this large airplane easy to transport and assemble with minimal fuss so you can arrive at the field and be in the air quickly.

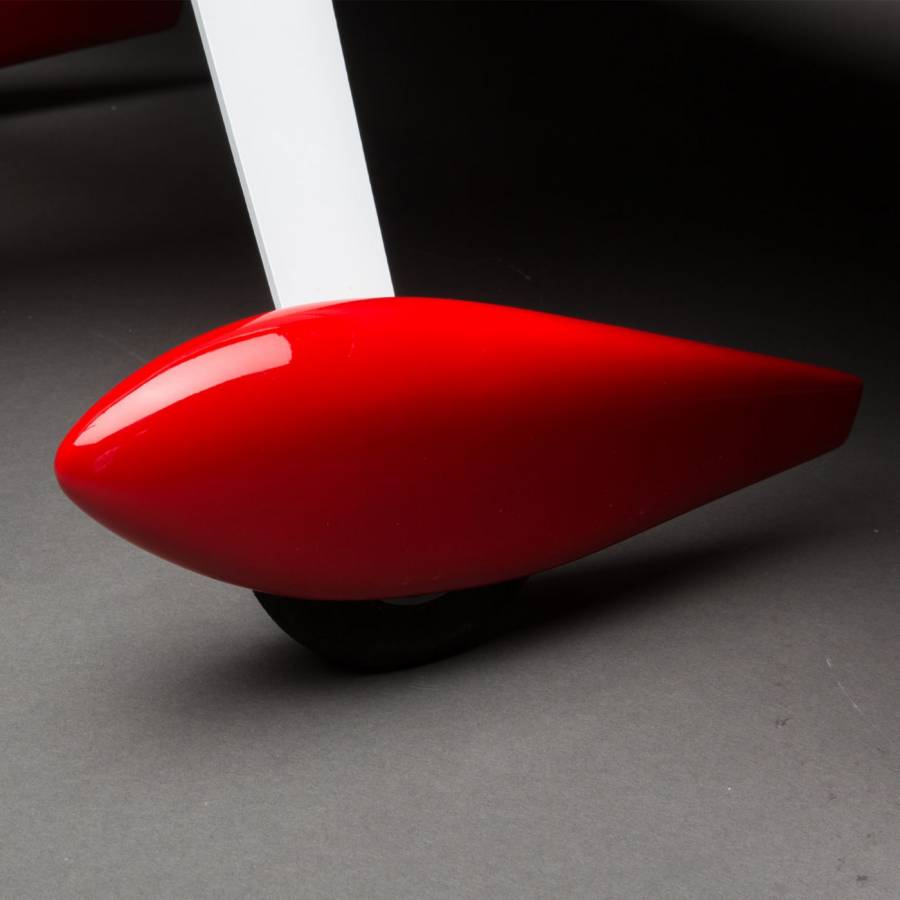

Aluminum Landing Gear

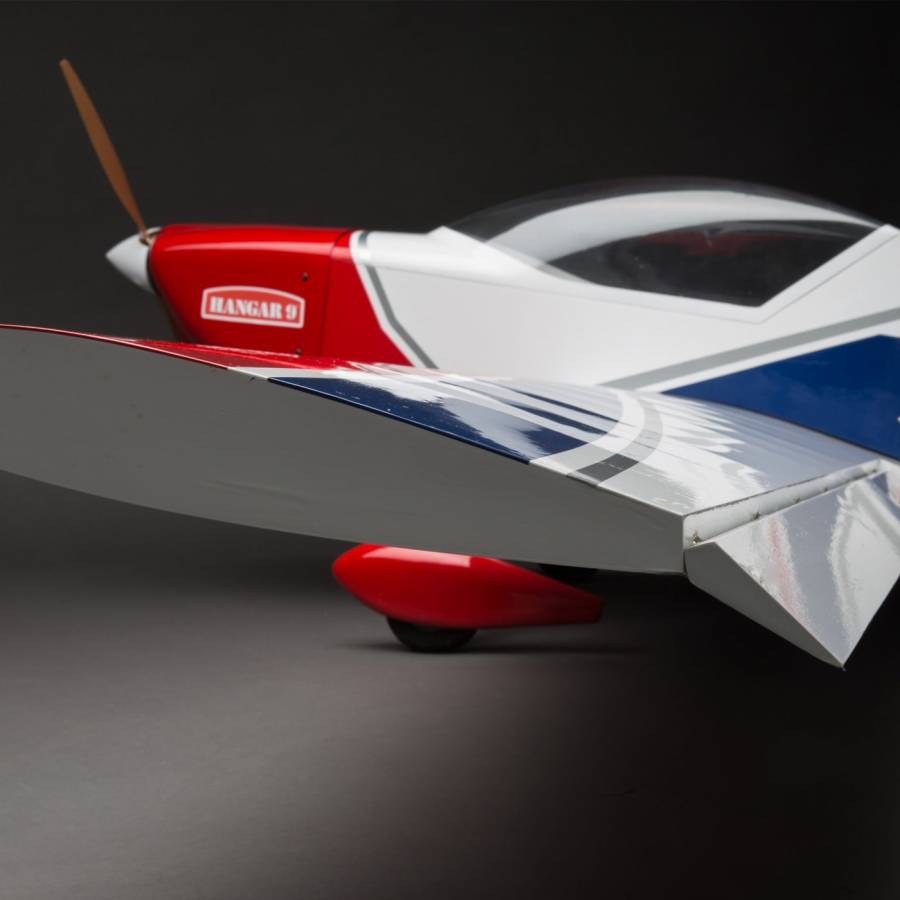

The wide track painted aluminum landing gear attaches to the fuselage for easy transportation and field assembly. The fiberglass wheel pants matches the film covering to perfection.

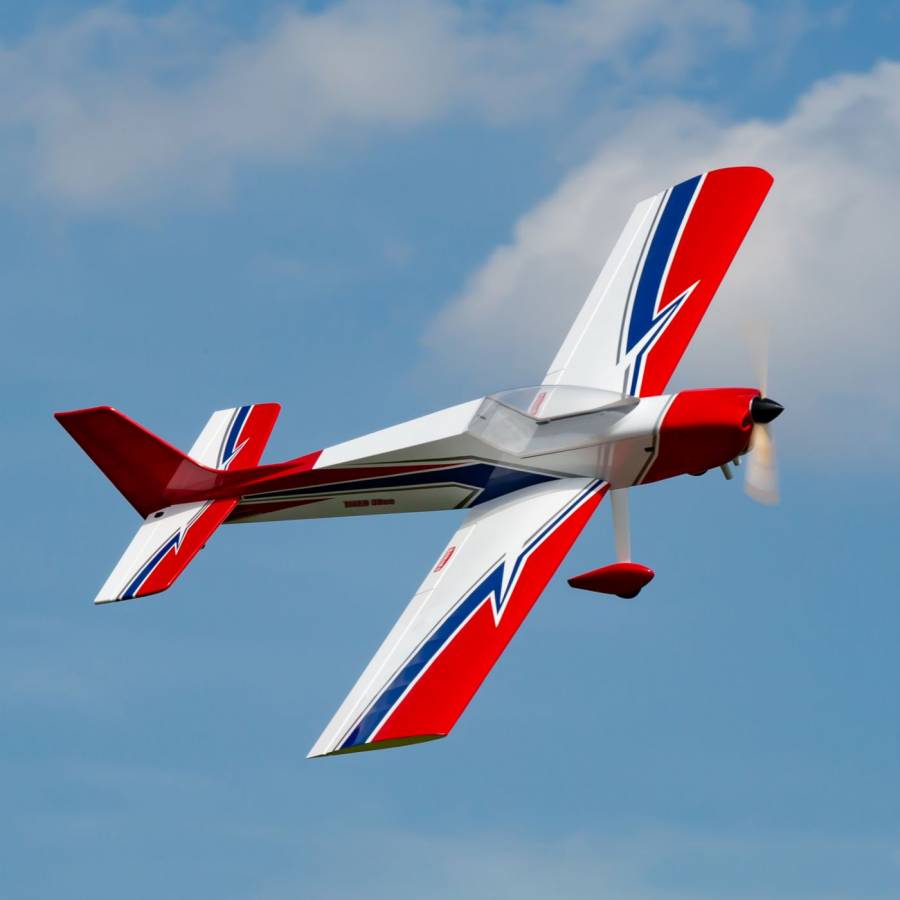

Wide Flight Envelope

The light wing loading and semi-symmetrical airfoil combine with an abundant power source to offer exceptionally friendly flight performance. Functional flaps (optional) allow its versatile flight to open even wider.

Power it the Way You Want It

The Tiger 30cc is designed to accept 30cc size two-stroke or four-stroke engines as well as brushless electric power plant equivalents.
