GPMQ4584

Adapter Kit 5/16"-24

Product Info | Substitutions
GREAT PLANES

GPMQ4584
Adapter Kit 5/16"-24
By GREAT PLANES
$6.99 CAD
Order Quantity:
No Picture Available

More like this... Spinner Adapter Nuts
But only from... GREAT PLANES


 Inventory Status Legend
StockStock availability for on-line ordering
1
$6.99
Warehouse ?
StockStock availability for pick up
1
$6.99
Warehouse ?
0
$6.99
Store - Charlottetown ?
0
$6.99
Store - Edmonton ?
0
$6.99
Store - Mississauga ?
0
$6.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES
                 This is a Spinner Adapter Kit by Great Planes.

FEATURES: Adapter kit for aluminum spinners
This steel adapter kit tightens the backplate & propeller onto the
engine, then using a single bolt-on design, holds & centers each
spinner perfectly on its baseplate.
Machined for accuracy
Includes aluminum bushing, prop washer and prop nut
This spinner adapter kit will fit the following engines:
-O.S. .60FP
-O.S. .61 FX & .61 SF
-SuperTigre .61-.90
One year quality guarantee
Installation instructions provided on the header card

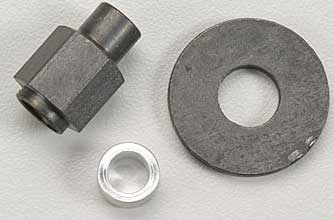

INCLUDES: (1) Propeller Nut
(1) Propeller Washer
(1) Aluminum Backplate Bushing

REQUIRES: 12mm Wrench To Tighten Propeller Nut
Aluminum Spinner w/Center Mounting Hole
10-32 Bolt

SPECS: Shaft Size: 5/16-24
Prop Nut Length: 15/16" (24mm)
Backplate Bushing Inner Diameter: 5/16"
Outer Diameter: 3/8"
JAL 4/20/99
ir/jl
kr3/20/03
735557645847 0735557645847
GPMQ4584
