GPMQ4278

Bolt On Axle 2" x 3/16" (2)

Product Info | Substitutions
RESOURCES

Substitutions (1)
GREAT PLANES

GPMQ4278
Bolt On Axle 2" x 3/16" (2)
By GREAT PLANES
$9.99 CAD
Order Quantity:
No Picture Available

More like this... Aircraft Accessories, Fixed Landing Gear Axles
But only from... GREAT PLANES


 Inventory Status Legend
Stock availability for on-line ordering
2
$9.99
Warehouse ?
Stock availability for pick up
2
$9.99
Warehouse ?
0
$9.99
Store - Charlottetown ?
0
$9.99
Store - Edmonton ?
0
$9.99
Store - Mississauga ?
0
$9.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

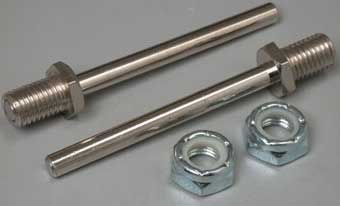

         These are Bolt-On Axle Shafts for Aluminum Main Landing Gear.

INCLUDES: Two Axles
Two Nuts

SPECS: Axles-
Axle Length: 2" (what the wheel turns on)
Axle Diameter: 3/16" (what the wheel turns on)
Threaded Mounting Portion Width: 5/16"
Overall Length: 2-7/16" (entire length)
Nuts-
Inner Diameter: 5/16"
Outer Diameter: "
Thickness: "

COMMENTS: If used on the Great Planes L3 Small 60 Dural Landing Gear
GPMQ1830, the holes in that landing gear must be slightly
enlarged.

js 06/11/94
ir/jl
735557642785 0735557642785
GPMQ4278
