GPMM3322

2S Micro LiPo Charger w/DC Car Adapter

Product Info | Fits What?
GREAT PLANES

GPMM3322
2S Micro LiPo Charger w/DC Car Adapter
By GREAT PLANES
Discontinued
No Picture Available

More like this... Battery Chargers, Lithium
But only from... GREAT PLANES
All items from... GREAT PLANES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$23.99
Warehouse ?
StockStock availability for pick up
0
$23.99
Warehouse ?
0
$23.99
Store - Charlottetown ?
0
$23.99
Store - Edmonton ?
0
$23.99
Store - Mississauga ?
0
$23.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

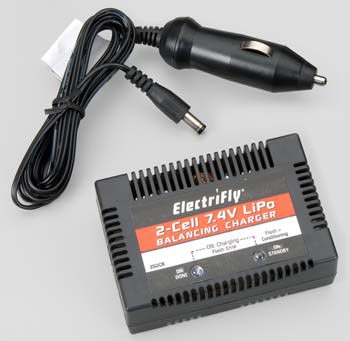

    This is the 2S 7.4V AC/DC Micro LiPo Balancing Charger with DC Adapter.
for use the with Micro F-86 Sabre EDF Jet from Great Planes.

**Only for use with LiPo batteries with a capacity range of 150 - 750mAh.**

FEATURES: Specifically designed for 2-cell 7.4V LiPo batteries only
Green and red status indicators
May also be powered by the ElectriFly 12V 1A AC/DC Power Supply
GPMM3310
One year limited warranty through Hobby Services beginning at date of
purchase

INCLUDES: 2-Cell Balancing Charger
12V DC Adapter

REQUIRES: LiPo charging bag

SPECS: Input Voltage: 11.7 - 15V DC
Battery Type, # of Cells: Two Lithium Polymer cells connected in
series (7.4V LiPo)
Charge Current: 450mA maximum
Charge Method: CC-CV (current drop-off termination)
Battery Capacity: 150 - 750mAh
Status Indicator: Two LEDs, one red, one green
Input Connectors: Polarized DC power jack for DC input
Output Connectors: One 2S balance plug
Case Size: 2.18 x 1.13 x 3.26" (55 x 28 x 82mm)
Weight: 2.1oz (59g)

COMMENTS: Manual not included. For charging instructions refer to the Great
Planes Micro F-86 EDF Sabre manual
Also available with AC adapter, GPMM3321

jxs 02/23/12
ir/jxs
735557433222 0735557433222
