GPMM3319

3S LiPo Smart Charger w/Car Adapter

Product Info | Fits What?
GREAT PLANES

GPMM3319
3S LiPo Smart Charger w/Car Adapter
By GREAT PLANES
Discontinued
No Picture Available

More like this... Test Equipment
But only from... GREAT PLANES
All items from... GREAT PLANES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$30.99
Warehouse ?
StockStock availability for pick up
0
$30.99
Warehouse ?
0
$30.99
Store - Charlottetown ?
0
$30.99
Store - Edmonton ?
0
$30.99
Store - Mississauga ?
0
$30.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

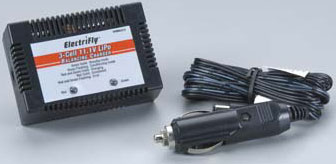

        This is the 3S Lipo Smart Balancing Charger for use with the
Hobbico FlyZone Cessna 182 Skylane Select EP RTF 47.5"

FEATURES: Built in balance port
Economical and portable balance charger for 3-cell lithium polymer
batteries only
"Constant Current/Constant Voltage" charge method
Automatically starts charge upon connection of battery to
balance plug
800mA maximum charge current requires no adjustment
Twin LEDs indicate charging status
One year limited warranty, USA and Canada only

INCLUDES: One 3S Lipo Smart Balancing Charger with car adapter and
instruction sheet

SPECS: Input Voltage: 11.1V-15V DC
Battery Types, # of Cells: 3 Lipo cells connected in series (11.1V)
Charge Current: 800mA maximum
Charge Method: CC-CV (current drop-off termination)
Battery Capacity: 1500-2100mAh
Status Indicator: Two LEDs; one green, one red
Input Connectors: Polarized DC power jack for DC input
Output connectors: One 3S balance plug
Dimensions: 2.18" x 1.13" x 3.26" (55 x 28 x 82mm)
Weight: 2.5oz. (72g)

COMMENTS: Charge only lithium-polymer (LiPo) rechargeable batteries that are
3S (3 cells in series) 11.1V nominal voltage, from 1250mAh to
2100mAh which have a balance connector.
This charger does not include the AC adapter. To select the
same charger with an AC and DC adapter order GPMM3318.

cnh 1/31/09
