GPMM3163

Equinox 2-5S Hi Pwr Leads Efly

Product Info
GREAT PLANES

GPMM3163
Equinox 2-5S Hi Pwr Leads Efly
By GREAT PLANES
$29.99 CAD
Order Quantity:
No Picture Available

More like this... Wire & Connectors
But only from... GREAT PLANES

Special Blue Dot Clearance

Please note: This item is currently in our Blue Dot Clearance Sale and the special price shown is only valid for the quantity available in any given location, on a first come first serve basis. Returns are not accepted. Back orders will not be accepted at clearance pricing. The quantity shown is approximate only as it does not reflect any quantities that may be in process with other customer orders. We apologize to those customers who may miss out and thank you for your understanding.

 Inventory Status Legend
StockStock availability for on-line ordering
2
$29.99
Warehouse ?
StockStock availability for pick up
2
$29.99
Warehouse ?
0
$29.99
Store - Charlottetown ?
0
$29.99
Store - Edmonton ?
1
$29.99
Store - Mississauga ?
0
$29.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
VENDOR TECHNOTES

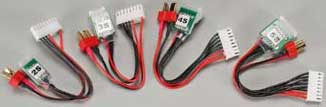

         These are the 2S, 3S, 4S and 5S High Power Adapters for the
Great Planes ElectriFly Equinox LiPo Cell Balancer, GPMM3160.
These adapter leads are compatible with LiPo batteries which are WIRED
FOR BALANCING from ElectriFly, Venom, and ESky.

FEATURES: These adapters with Deans plugs are required when Charging or
Discharging between 3-6A through the Equinox
Unlike the adapters included w/the Equinox, these high power adapters
transfer some current through the Deans plug and the White Balance
Connectors yet still allow the Equinox to monitor the voltage of
each cell in the pack. All connectors must be connected for these
adapters to work correctly
One Year guarantee

INCLUDES: One each 2S, 3S, 4S and 5S High Power Adapters for Equinox

REQUIRES: Connecting to Cell Balancer and battery

SPECS: Length of Lead with Balance Connectors: 3.7" (94mm) not including
connectors
Length of Lead with Deans Connector: 3.9" (100mm) not including
connectors
Compatible Input: ElectriFly Equinox LiPo Cell Balancer
Compatible Batteries: LiPo Batteries Wired for Balancing ONLY
Voltage Range: 2S, 3S, 4S and 5S (7.4V, 11.1V, 14.8V, 18.5V)
Max Current: 6A
Balance Connector to Battery: JST XH Connector in Shrouded Header
Battery Power Connector: Deans Ultra Male

COMMENTS: Use of these adapters is only necessary when using the Equinox in
Interface Mode (connected to a separate Charger or Discharger).
It is not necessary to use a high powered adapter when the Equinox
is used in Quick-Balance Mode.
