GPMM2025

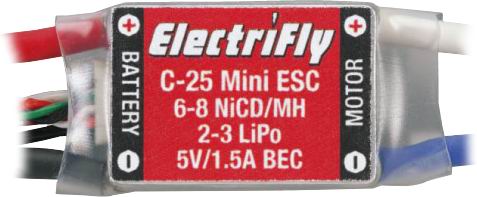

ESC C-25 Mini Brushed w/BEC

Product Info | Substitutions
RESOURCES

Substitutions (1)
GREAT PLANES

GPMM2025
ESC C-25 Mini Brushed w/BEC
By GREAT PLANES
Discontinued
Click to Enlarge
click to enlarge

More like this... Aircraft Electronic Speed Controls (ESC)
But only from... GREAT PLANES


 Inventory Status Legend
Stock availability for on-line ordering
0
$47.99
Warehouse ?
Stock availability for pick up
0
$47.99
Warehouse ?
0
$47.99
Store - Charlottetown ?
1
$47.99
Store - Edmonton ?
0
$47.99
Store - Mississauga ?
0
$47.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
6-10 Cells
NiCd/NiMH Cells:
2-3 cc
Li-Po Cells:
25 A
Max Output:
1.3 kHz
Operating Frequency:
5V/1A
BEC:
0.80V NiMH/NiCd—2.75V Li-Po
Voltage Cutoff:
25 mm
Length:
18 mm
Width:
11 mm
Height:
24.1 g
Weight:

FEATURES
  • Automatic temperature protection reduces max. throttle to 70% when max. temperature is reached.
  • On/Off switch and LEDs on an externally mountable lead.
  • Pushbutton, twin LEDs and audible tones for easy set-up.
  • Programmable battery types.
  • Programmable brake.
  • Solid-state current overload limiter.
  • BEC provides sufficient current for receiver and two standard servos.
  • Includes universal radio connector, Deans Ultra male connector for battery, 3.5mm gold plated female bullet connectors for motor

Designed for medium sized aircraft with 400-size (and some 500- and 600-size) motors requiring 25A or less.

PRODUCT RESOURCES
VENDOR TECHNOTES
     This is the C-25 Mini High Frequency Electronic Speed Control w/BEC.
For small to medium size electric aircraft with 400 size and
some 500 and 600 size Brushed Motors requiring 25A or less.

FEATURES: Compact size to minimize weight and simplify installation
Programmable battery types
Programmable brake
Pushbutton, twin LEDs and audible tones for easy set-up
ON/OFF switch and LEDs on an externally mountable lead
Automatic temperature protection reduces max. throttle to 70%
when max. temperature is reached.
Very smooth throttle response
"Safe-Start" system prevents accidental motor starts by disabling the
motor circuitry until the throttle stick is moved to full throttle,
then to the OFF position
Factory installed radio, motor and battery connectors
Fully proportional forward only with programmable brake
Battery Eliminator Circuitry provides sufficient power for the
receiver and two standard servos. The motor battery powers the
receiver and servos, then when voltage is reduced to the
appropiate voltage the Low Voltage cut-off circuitry stops motor
while continuing to supply power to the receiver and servos
High frequency to optimize battery run-time and cool operation
Pushbutton twin LEDs and audible tones for easy set-up
180 day limited warranty

INCLUDES: One C-25 Mini Electronic Speed Control with Star Plug for battery,
3.5mm gold plated Female Bullet motor Connectors and Universal
receiver connector
One instruction sheet

REQUIRES: Attaching to motor and setting up speed control
Battery pack
Plug Universal plug into the throttle channel on the receiver

SPECS: Length: .98" (25mm)
Height .43" (11mm)
Width: .71" (18mm)
Weight: .85oz (24.1g) with wires
Input: 6-10 NiCd/NiMH cells; 2-3 LiPo cells
Max Rated Current: 25A continuous
BEC Voltage: 5V/1.5A
Low Voltage Cutoff: .80V per cell for NiCd/NiMH
2.75V per cell for LiPo
Connectors: Receiver lead- Universal
Battery lead- Star Plug
Motor Connector- 3.5mm gold plated female
bullet connectors
Switching Frequency: 1.3kHz
Motor Size: 400 (and some 500 & 600 size) Brushed only

COMMENTS: Will handle 2 standard servos
Do NOT use with Brushless Motors

jxs 6/13/05
EEW 7/19/05
ir/jxs
updated tlc 2/9/16
