GPMM2015

ESC C-12 Micro Brushed w/BEC

Product Info | Substitutions | Fits What?
RESOURCES

Substitutions (1)
Fits What? (1)
GREAT PLANES

GPMM2015
ESC C-12 Micro Brushed w/BEC
By GREAT PLANES
Discontinued
Click to Enlarge
click to enlarge

More like this... Aircraft Electronic Speed Controls (ESC)
But only from... GREAT PLANES


 Inventory Status Legend
Stock availability for on-line ordering
0
$33.99
Warehouse ?
Stock availability for pick up
0
$33.99
Warehouse ?
0
$33.99
Store - Charlottetown ?
0
$33.99
Store - Edmonton ?
0
$33.99
Store - Mississauga ?
0
$33.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
6-8 Cells
NiCd/NiMH Cells:
2-3 Cells
Li-Po Cells:
12 A
Max Output:
2.5 kHz
Operating Frequency:
5V/1A
BEC:
0.80V NiMH/NiCd—2.75V Li-Po
Voltage Cutoff:
21 mm
Length:
11 mm
Width:
8 mm
Height:

FEATURES
  • Compatible with NiCd, NiMH and Li-Po batteries
  • Smooth throttle response
  • Safe-start feature prevents accidental prop rotation at start up
  • Pre-installed motor, battery and receiver connectors
  • Cool, high-frequency operation to maximize battery run time
  • Weight-reducing BEC
  • For brushed motors

Designed for small-to-medium size electric aircraft with 400-size or smaller motors requiring 12A or less.

PRODUCT RESOURCES
VENDOR TECHNOTES

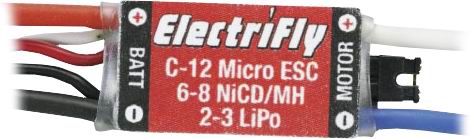

    This is the C-12 Micro High Frequency Electronic Speed Control w/BEC.
For small to medium size electric aircraft with 400 size or
smaller Brushed Motors requiring 12A or less.

FEATURES: Extremely compact size to minimize weight and simplify installation
Set battery type with included jumper
"Safe-Start" system prevents accidental motor starts by disabling the
motor circuitry until the throttle stick is moved to full throttle,
then to the OFF position.
Factory installed motor, radio and battery connectors
Fully proportional forward only (no brake)
Battery Eliminator Circuitry provides sufficient current for the
receiver and three to four micro servos. The motor battery powers
the receiver and servos, then when voltage is reduced to the
appropriate level, the Low Voltage cut-off circuitry stops the
motor while continuing to supply power to the receiver and servos.
High frequency to optimize battery run-time and cool operation
Brilliant Blue LED and audible tones for easy set-up
Very smooth throttle response
180 day limited warranty

INCLUDES: One C-12 Micro Electronic Speed Control with polarized micro
connector for battery, 2mm gold plated female bullet motor
connectors and Universal receiver connector
One instruction sheet

REQUIRES: Attaching to motor and setting up speed control
Battery pack
Plug Universal plug into the throttle channel on the receiver


SPECS: Length: .83" (21mm)
Height .31" (8mm)
Width: .43" (11mm)
Weight: .28 ounce (8g) with wires
Input: 6-8 NiCd/NiMH cells; 2-3 LiPo cells
Max Rated Current: 12A continuous
BEC Voltage: 5V/1A
Low Voltage Cutoff: .80V per cell for NiCd/NiMH
2.75V per cell for LiPo
Connectors: Receiver lead- Universal
Battery lead- 2R micro connector
Motor connector- 2mm gold plated female bullet connectors
Switching Frequency: 2.5kHz
Motor Size: 400 or smaller Brushed only

COMMENTS: Will handle 4 micro servos with proper cooling
Do NOT use with Brushless motors
jxs 6/13/05
EEW 7/19/05
ir/jxs
updated tlc 3/7/16
