GPMG4805

Rimfire 65cc Outrunner BL Motor

Product Info
GREAT PLANES

GPMG4805
Rimfire 65cc Outrunner BL Motor
By GREAT PLANES
$379.99 CAD    399.99
Save $20.00 (5%)

Order Quantity:
No Picture Available

More like this... Electric Aircraft Motors
But only from... GREAT PLANES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$379.99
Warehouse ?
StockStock availability for pick up
0
$379.99
Warehouse ?
0
$379.99
Store - Charlottetown ?
0
$379.99
Store - Edmonton ?
0
$379.99
Store - Mississauga ?
0
$379.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
VENDOR TECHNOTES

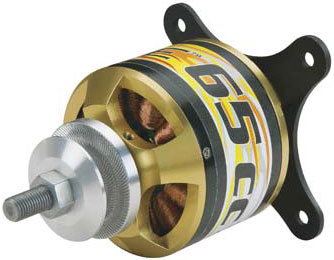

                 This is the Great Planes ElectriFly RimFire
65cc 80-85-160 Brushless Outrunner Electric Motor.

FEATURES: Designed for explosive acceleration and maximum torque
Lightened aluminum can houses high torque rare earth Neodymium
magnets
Double shielded bearings
Virtually maintenance-free; no commutators or brushes to wear out

INCLUDES: Great Planes ElectriFly RimFire 80-85-160 Brushless Outrunner
Electric Motor, Motor Mount (GPMG1212), 6mm Male and Female
Connectors, four 5.5 x 11mm Countersunk Motor Mount Screws and
Instruction Manual

REQUIRES: Speed control for Brushless Motors such as the ElectriFly Silver
Series SS-120
Propeller: 22 x 10- 26 x 12 (due to the high torque and high RPM of
this motor the use of electric-only propellers is not recommended)

SPECS: Aircraft Application:
3D Airplanes up to 26.0lb (11.79kg)
Sport Planes up to 42.0lb (19.1kg)

Can Diameter: 3.14" (80mm)
Can Length: 3.35" (85mm)
Shaft Diameter: .39" (10mm)
Mounting Space Length: 3.83" (97.3mm)
RPM/V (kV Rating): 160
Input Voltage: 33.3-55.5V (9-15S LiPo)
Connector: 6mm bullet plugs
Number of Poles: 14
Max. Constant Current: 135A (at 12S)
Max. Continuous Power: 7500W
Max. Surge Current: 150A (at 12S)
Max. Surge Power: 8400W
Max. Constant Watts: 7500W
Weight: 52.2oz (1480g)

COMMENTS: The three-number designation refers to Motor Diameter, Motor Length
and kV Rating.
