GPMG4725

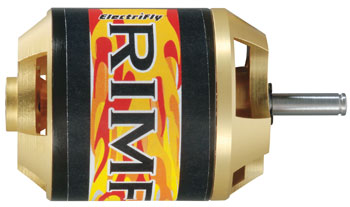

Rimfire 42-60-800 Brushless Motor

Product Info | Fits What?
GREAT PLANES

GPMG4725
Rimfire 42-60-800 Brushless Motor
By GREAT PLANES
$134.99 CAD    142.99
Save $8.00 (6%)

Order Quantity:
No Picture Available

More like this... Electric Aircraft Motors
But only from... GREAT PLANES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$134.99
Warehouse ?
StockStock availability for pick up
0
$134.99
Warehouse ?
0
$134.99
Store - Charlottetown ?
0
$134.99
Store - Edmonton ?
1
$134.99
Store - Mississauga ?
0
$134.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
42 mm
Diameter:
60 mm
Length:
268 g
Weight:
5 mm
Shaft Diameter:
76 mm
Shaft Length:
60 A
Max Constant Current:
100 A
Surge Current:
1110 W
Max Constant Watts:
1850 W
Max Surge Watts:
4.6 A
No Load Current:
800 rpm
Kv:
10x5e - 14x7e
Prop Size:

PRODUCT RESOURCES
VENDOR TECHNOTES
               This is the Great Planes ElectriFly RimFire .46
42-60-800 Brushless Outrunner Electric Motor.

FEATURES: For Sport airplanes up to 7.5lbs (3400g) and 3D airplanes up to
5lbs (2210g)
Designed for explosive acceleration and maximum torque eliminating
the need for a gearbox
Lightened aluminum can houses high torque rare earth Neodymium
magnets
Double shielded bearings
Virtually maintenance-free; no commutators or brushes to wear out
Two year quality guarantee

INCLUDES: Great Planes ElectriFly RimFire .46 42-60-800 Brushless Outrunner
Electric Motor
Outrunner Motor Mount GPMG1205
Outrunner Prop Adapter GPMQ4906

REQUIRES: Brushless Motor-compatible 60A Electronic Speed Control
Propeller: Depending on aircraft application

SPECS: Motor Diameter: 1.65" (42mm)
Motor Length: 2.36" (60mm)
Shaft Diameter: .20" (5mm)
Shaft Length: .67" (17mm)
Lead Length: 3" (76mm)
Connectors: Bullet type, 4.0mm diameter
Max. Constant Current: 60A
Max. Surge Current: 100A
Max. Constant Watts: 1110W
Burst Watts: 1850W
No Load Current: 4.6A
Input Voltage: 18.5-22.2V (5-6S LiPo)
RPM/V (kV Rating): 800
Weight: 9.5oz (268g)
Suggested Propeller Size: 10 x 5E-11 x 5E

COMMENTS: The three-number designation refers to Motor Diameter, Motor Length
and kV Rating.

jxs 4/20/06
ir/jxs
