GPMG4525

Rimfire 28-26-1000 Brushless Motor

Product Info
GREAT PLANES

GPMG4525
Rimfire 28-26-1000 Brushless Motor
By GREAT PLANES
$59.99 CAD    66.99
Save $7.00 (10%)

Order Quantity:
No Picture Available

More like this... Electric Aircraft Motors
But only from... GREAT PLANES
All items from... GREAT PLANES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$59.99
Warehouse ?
StockStock availability for pick up
0
$59.99
Warehouse ?
0
$59.99
Store - Charlottetown ?
0
$59.99
Store - Edmonton ?
0
$59.99
Store - Mississauga ?
0
$59.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
28 mm
Diameter:
26 mm
Length:
1000 rpm
RPM/V (Kv):
41 g
Weight:
7.4-11.1 V
Input Voltage:
12 A
Max Constant Current:
15 A
Max Surge Current:
15 A
Max Constant Current:
135 W
Max Constant Watts:
.7 A
No Load Current:
9x3.5S - 11x4.7S
Prop Range:

PRODUCT RESOURCES
VENDOR TECHNOTES

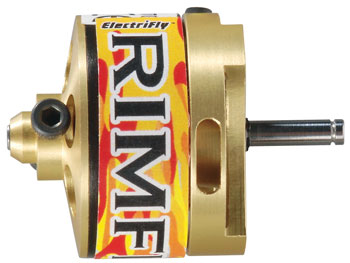

                 This is the Great Planes ElectriFly RimFire
28-26-1000 Brushless Outrunner Electric Motor.

FEATURES: For Sport airplanes up to 21oz (595g) and 3D airplanes up to 13oz
(370g)
Designed for explosive acceleration and maximum torque
Lightened aluminum can houses high torque rare earth Neodymium
magnets
Double shielded bearings
Virtually maintenance-free; no commutators or brushes to wear out

INCLUDES: Great Planes ElectriFly RimFire 28-26-1000 Brushless Outrunner
Electric Motor with motor mount, leads, 2mm male connectors, and
prop adapter

REQUIRES: Speed control for Brushless Motors such as the ElectriFly Silver
Series 12 (GPMM1810)
*GPMM3122 3.5mm ML/2mm FEM BLT ADPT* SEE COMMENTS

SPECS: Can Diameter: 28mm
Can Length: 26mm
Shaft Diameter: 3mm
RPM/V (Kv Rating): 1000
Weight: 1.4oz (41g)
Input Voltage: 7.4-11.1V (2-3S LiPo)
Max. Constant Current: 12A
Max Surge Current: 15A
Max Constant Watts: 135W
Burst Watts: 165W
No Load Current: .7A
Suggested Prop Sizes: 9x4.5 - 10x4.5 slow flyer

COMMENTS: The three-number designation refers to Motor Diameter, Motor Length
and kV Rating.
If using the SS25 ESC(GPMM1820), the GPMM3122 3.5mm ML/2mm FEM BLT
ADPT is required

jxs 4/20/06
ir/jxs
