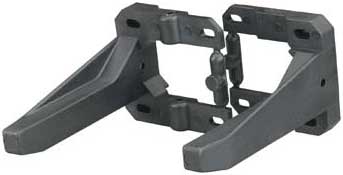

Adjustable Motor Mount .60 - 1.20
Great Planes Universal Engine Mounts are adjustable. Sizes cover engines from .20 up to 1.80. Strong, fiber-reinforced nylon construction can be easily tapped to fit any engine. Nose wheel bearing holes pre-drilled for both upright and side mounted engines.
This engine mount is replacing the existing 60-120 size mounts from GPM. FEATURES: Adjustable width glass filled nylon mount. INCLUDES: Right and left halves of mount, four 8-32x1" machine screws, four #8 washers, four #8 lock washers & instructions w/ mounting template. SPECS: Overall length: 4-1/2" Usable beam length: 2-3/4" Mounting width: Min: 1-7/16", Max: 1-7/8" Mounting beam width: 9/16" Firewall bolt pattern: 1-7/8"x 1-7/8" REQUIRES: Locknuts or blind nuts (8-32) for machine screws, and self-tapping screws for mounting the engine to the engine mount. Locknuts GPMQ3348, blind nuts GPMQ3328 COMMENTS: Has holes for nose gear in both upright and side mount. This mounts hole pattern does not work with the old MM60 mount. 4-10-96/eke ir/jl
