GPMG0855

GD-600 Prop Drive w/Set Screw

Product Info | Fits What?
GREAT PLANES

GPMG0855
GD-600 Prop Drive w/Set Screw
By GREAT PLANES
$4.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Motor Accessories, Gear Boxes
But only from... GREAT PLANES


 Inventory Status Legend
StockStock availability for on-line ordering
1
$4.99
Warehouse ?
StockStock availability for pick up
1
$4.99
Warehouse ?
0
$4.99
Store - Charlottetown ?
0
$4.99
Store - Edmonton ?
0
$4.99
Store - Mississauga ?
0
$4.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

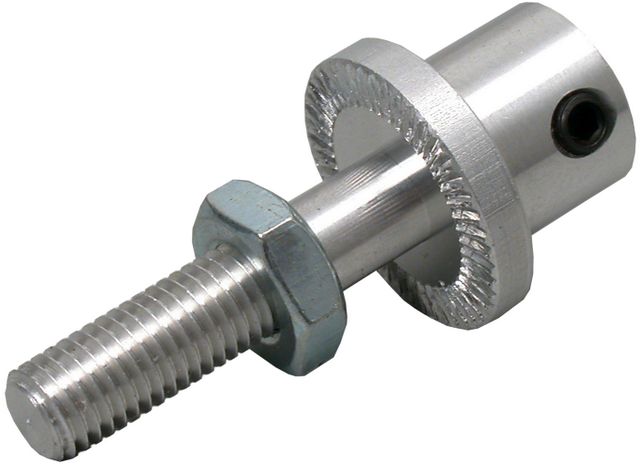

        This is a Prop Drive with Set Screw and Propeller Nut for the
GD-600 Electric Flight 2.5:1 ratio Gear Drive Unit (GPMG0850).

Compatible with any electric flight motor having a 5mm diameter output shaft.

Mounts onto the shaft coming out of the gearbox with the included
set screw. The propeller mounts onto this with the included nut.

FEATURES: Aluminum prop drive
Metal hardware
One year quality guarantee
Fits a 5mm prop shaft

INCLUDES: One Replacement Prop Drive
One 3.5 x 5mm Set Screw
One -28 Propeller Nut (wrench size for nut is 11mm)

REQUIRES: Does not include the drive washer
Assembly onto a GD-600 gearbox.

SPECS: Length: 41.5mm end to end
27.5mm shaft w/19.7mm threaded portion

Diameter: 6.25mm prop shaft
5mm ID for motor shaft
19mm largest part of hub (thrust washer portion)
12.7mm smallest part of hub
