GPMG0700

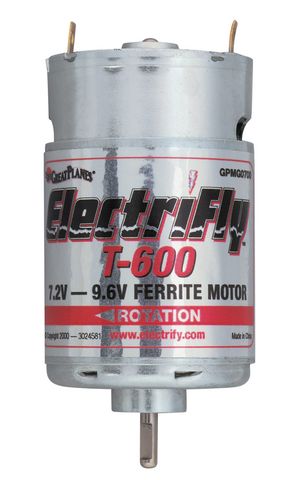

T-600 7.2-9.6v Ferrite Motor

Product Info
GREAT PLANES

GPMG0700
T-600 7.2-9.6v Ferrite Motor
By GREAT PLANES
Discontinued
Click to Enlarge
click to enlarge

More like this... Electric Aircraft Motors
But only from... GREAT PLANES
All items from... GREAT PLANES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$19.99
Warehouse ?
StockStock availability for pick up
0
$19.99
Warehouse ?
0
$19.99
Store - Charlottetown ?
0
$19.99
Store - Edmonton ?
1
$19.99
Store - Mississauga ?
0
$19.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
22 T
Windings:
3º
Timing:
.52 ohms
Resistance:
7.76 oz
Weight:
20,000 - 23,400 rpm
Max RPM:
1.9-2.6 A
Current:
Counter-Clockwise
Rotation Direction:
.125 in
Shaft Diameter:
1.44 in
Case Diameter:
2.25 in
Case Length:
Closed
Endbell Type:
Expoxy Balanced
Rotor Assembly:
Bronze
Bushing Type:
7.2-9.6 V
Voltage Range:

VENDOR TECHNOTES
  This is the ElectriFly T-600 7.2-9.6V Ferrite Motor from Great Planes.
This motor is designed for electric powered R/C airplanes.
(Depending on application, it can also be used on R/C boats and cars.)

FEATURES: Made with Ferrite magnets
Forward (counter-clockwise) rotation
90 day warranty

INCLUDES: One ElectriFly T-600 7.2-9.6V Ferrite Motor
One .01 uF ceramic capacitor
One Instruction Sheet

SPECS: Windings: 22 turns of .75mm wire
Timing: 3
Resistance: .52 Ohms
Weight: 7.76oz (220g)
Max RPM (unloaded): 20,000 - 23,400
Current (unloaded): 1.9-2.6A
Rotation Direction: Counter-clockwise
Output Shaft Diameter: .125" 3.17mm)
Output Shaft Shape: Rounded with one flat side
Can Diameter: 1.44" (36.6mm)
Can Length: 2.25" (57mm)
Endbell Type: Closed
Rotor Assembly: Epoxy balanced
Bushing Type: Bronze
Misc Specs: Flux ring added for increased power, tightly crimped to
can, one .01uF ceramic capacitor

Performance specs while turning an 8x4 propeller with 8.4V input:
RPM: 11340-11820
Current: 21.4-23.1A
Power: 140W
JAL 6/21/00
ir/jl
updt jxs 3/15/04
