GPMG0495

Gear Drive 12 mm Motors

Product Info
GREAT PLANES

GPMG0495
Gear Drive 12 mm Motors
By GREAT PLANES
$11.99 CAD    14.99
Save $3.00 (20%)

Order Quantity:
No Picture Available

More like this... Motor Accessories, Gear Boxes
But only from... GREAT PLANES


 Inventory Status Legend
Stock availability for on-line ordering
0
$11.99
Warehouse ?
Stock availability for pick up
0
$11.99
Warehouse ?
0
$11.99
Store - Charlottetown ?
0
$11.99
Store - Edmonton ?
0
$11.99
Store - Mississauga ?
0
$11.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
VENDOR TECHNOTES

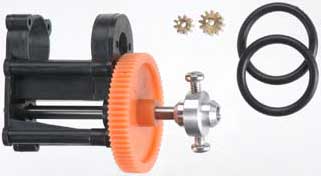

          This is the Great Planes ElectriFly 12mm Ammo Gear Drive.

FEATURES: For 12mm ElectriFly Ammo Motors and most other 12mm In-runner motors
High-precision spur and pinion gear for quiet operation
Dual ball bearing-supported output shaft
Bolts directly to the ElectriFly Brushless Motor Mount (GPMG1250)
Two different pinion gear ratios, 5.3:1 and 7.7:1

INCLUDES: One gear drive
All assembly hardware
Prop saver
64T spur gear
9T and 12T pinion gears
Two rubber O-rings
Instruction sheet

REQUIRES: Attaching to the motor mount

SPECS: Length: 1.97" (50mm) approx.
Width: .59" (15mm) approx.
Motor output shaft dimension: 3mm
Gear ratios included: 5.3:1 with 12T pinion and 64T spur
7.1:1 with 9T pinion and 64T spur
Weight: .24oz (7g)
