GPMA6006

Super Sportster BL EP RxR ARF

Product Info | Replacement Parts
GREAT PLANES

GPMA6006
Super Sportster BL EP RxR ARF
By GREAT PLANES
Discontinued
Click to Enlarge
click to enlarge

More like this... ARF Park Flyer Electric Aircraft
But only from... GREAT PLANES
All items from... GREAT PLANES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$172.99
Warehouse ?
StockStock availability for pick up
0
$172.99
Warehouse ?
0
$172.99
Store - Charlottetown ?
0
$172.99
Store - Edmonton ?
0
$172.99
Store - Mississauga ?
0
$172.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Super Sportster EP RxR Servo
$13.99

Super Sportster EP RxR Tail Wheel Parts Set
$5.99

Super Sportster EP RxR Landing Gear w/Wheels Se
$17.99

Super Sportster EP RxR Wing Tube Set
$8.99
SPECIFICATIONS
40 in
Wingspan:
267
Wing Area:
20-22 oz/ft²
Wing Loading:
32.5 in
Length:
20-22 oz
Weight:
4-channel
Motor Requirements:
4-channel
Receiver Requirements:
1250-1300mAh 3S 11.1V LiPo
Battery Requirements:
Yes
Motor (included):
No
Radio (included):
No
Receiver (included):
Yes
Servo (included):
Yes
ESC (included):
No
Battery (included):







click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

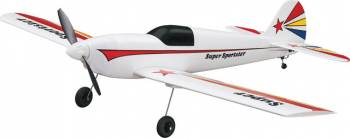

        This is the brushless electric powered, radio controlled, RXR
ElectriFly by Great Planes Super Sportster.
Receiver Ready, factory installed Motor, ESC and Servos

FEATURES: Construction: AeroCell foam
Wing: Two-piece with carbon wing tube and one bolt attachment to
fuselage
Aileron Control: Dual servo
Motor: Brushless, specs such as kV rating and RPM not provided by
manufacturer
Electronic Speed Control: 18A with 2A/5V BEC and 5.5-17V DC input

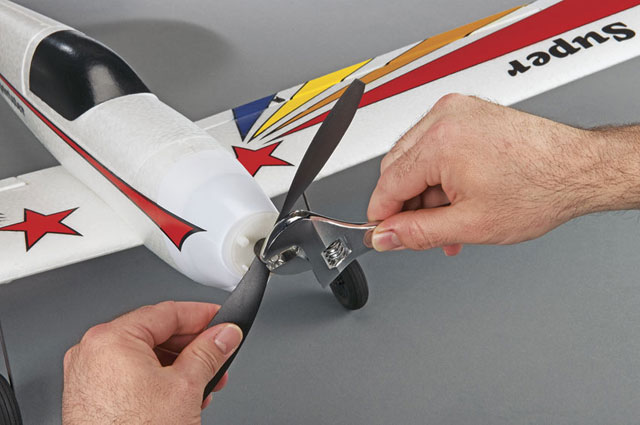

Propeller: Great Planes 9x6 Power Flow (GPMQ6640)
Cowl: Molded white plastic

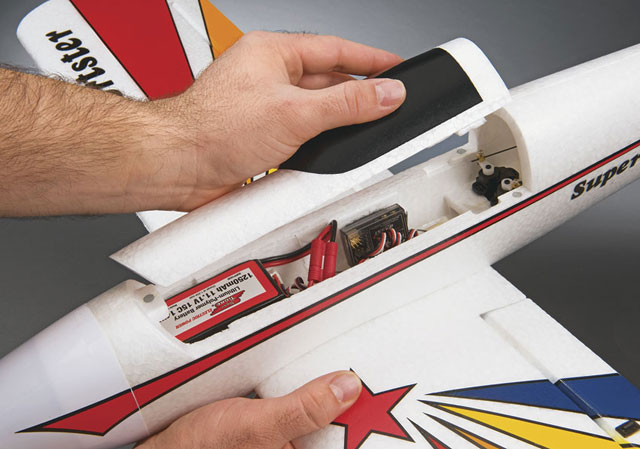

Canopy: Foam, attaches to fuselage with magnets

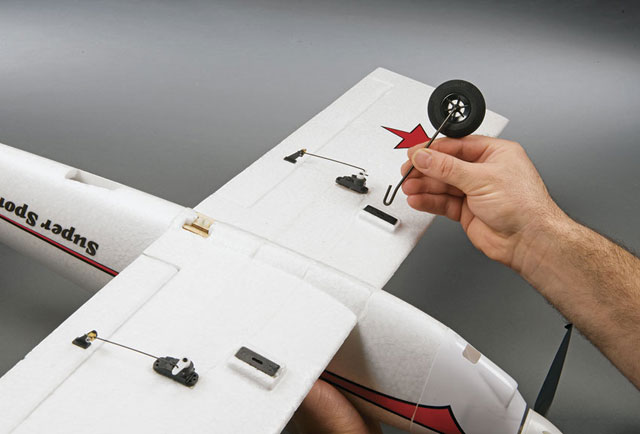

Landing Gear: Prebent wire 0.10" (2.5mm) diameter
Wheels: Foam 2" (51mm) diameter main, 0.63" (16mm) diameter tailwheel
Spinner: White plastic 1.75" (44.5mm)
Servos: Four micro, (two aileron, one rudder and one elevator)
Warranty: Great Planes Model Manufacturing Company guarantees this
kit to be free from defects in both materials and workmanship at
the date of purchase. This warranty does not cover component parts
damaged by use or modification.

INCLUDES: RXR Super Sportster with ESC, Four Servos, Brushless Motor
Prop, Prop Adapter, Spinner and Instruction Manual

REQUIRES: Radio: 4-channel transmitter and receiver
LiPo Battery: 1200-1300mAh 3S 11.1V, GPMP0840
Adapter: Deans Ultra Male to SuperTigre Female, if using battery
listed above
Battery Charger LiPo compatible
Building and field equipment

SPECS: Wingspan: 40" (1015 mm)
Wing Area: 267 inē (17.2 dmē)
Weight: 20-22oz (565-605g)
Wing Loading: 10.8-11.5 oz/ftē (33-35 g/dmē)
Length: 32.5" (825mm)
Center of Gravity (CG): 2-5/8" (67mm) back from the leading edge of
the wing measured at the fuselage side
Control Throws- Low Rate High Rate
Elevator Up & Down: 1/4" (6mm) 7° 9/16" (14mm) 16°
Rudder Right & Left: 5/8" (16mm) 14° 7/8" (22mm) 19°
Ailerons up and Down: 7/32" (6mm) 9° 5/16" (8mm) 13°

COMMENTS: This brushless motor and ESC are designed to function together.
If you want to upgrade the motor, please follow the motor
manufacturer's recommendations concerning the proper amperage of
the required ESC.

jxs 04/20/11
ir/jxs
