GPMA2550

Viper 500 Back Plate Mount

Product Info | Fits What?
RESOURCES

Fits What? (3)
GREAT PLANES

GPMA2550
Viper 500 Back Plate Mount
By GREAT PLANES
$16.99 CAD    17.99
Save $1.00 (6%)

Order Quantity:
No Picture Available

More like this... Aircraft Replacement Part, Motor Mounts
But only from... GREAT PLANES


 Inventory Status Legend
Stock availability for on-line ordering
0
$16.99
Warehouse ?
Stock availability for pick up
0
$16.99
Warehouse ?
0
$16.99
Store - Charlottetown ?
0
$16.99
Store - Edmonton ?
0
$16.99
Store - Mississauga ?
0
$16.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

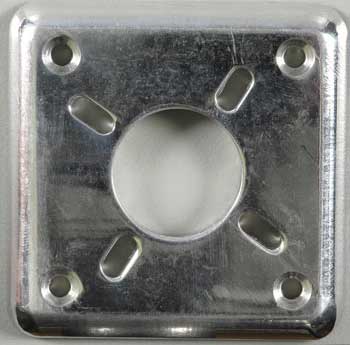

       This is the Back Plate Mount for the Great Planes Viper 500.
This mounts to the Firewall and the engine Mounts to it.

FEATURES: Metal Construction
Silver in Color
Countersunk Screw Holes
Pre-Drilled Holes
Adjustable Engine Mount Holes

INCLUDES: One Back Plate Mount

REQUIRES: Assembly onto Aircraft.

SPECS: Length: 2.25" (57mm)
Width: 2.25" (57mm)
Thickness: .20" (5mm)
Distance Between Firewall Mount Holes (Side to Side): 1.57"
Distance Between Firewall Mount Holes (Top to Bottom): 1.57"
Distance Between Engine Mount Holes (Top to Bottom): .81"-1.06"
Distance Between Engine Mount Holes (Side to Side): .81"-1.06"
All Screw Hole Diameters: .15" (3.8mm)
