GPMA2469

Super Stearman Spinner

Product Info | Fits What?
RESOURCES

Fits What? (1)
GREAT PLANES

GPMA2469
Super Stearman Spinner
By GREAT PLANES
Discontinued
No Picture Available

More like this... Aircraft Replacement Part, Misc
But only from... GREAT PLANES


 Inventory Status Legend
Stock availability for on-line ordering
0
$24.99
Warehouse ?
Stock availability for pick up
0
$24.99
Warehouse ?
0
$24.99
Store - Charlottetown ?
0
$24.99
Store - Edmonton ?
0
$24.99
Store - Mississauga ?
0
$24.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

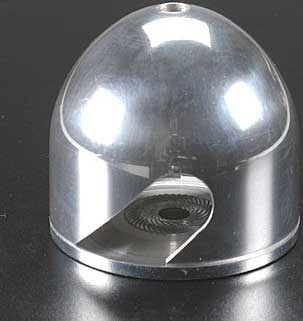

 This is the Replacement Aluminum Spinner for the Great Planes Super Stearman.
This is the cone that surrounds the propeller.

FEATURES: Aluminum construction

INCLUDES: One 2 1/2" (63mm) aluminum spinner
One spinner backplate
One 5/16"-24 spinner adapter
One 8-32 x 1" caphead machine screw
One 3mm allen key

REQUIRES: Installation onto engine with 5/16-20 crankshaft threadsize.

SPECS: Diameter: 2 1/2" (63mm)
Height: 2 1/4" (56mm)
Propeller blade slot width at backplate: 0.95" (24mm)
Propeller slot width: 0.63" (16mm)
Propeller slot height at tallest point
perpendicular to base: 0.90" (22.8mm)
Center of angled slot length from base to rounded end: 1.14" (29mm)

COMMENTS: The outer wrapping has a sticker stating this is a .91 size spinner.
That is incorrect, the spinner is for the 1.20 Super Stearman


cmc 07/20/04
ir/jxs
