GPMA2092

J-3 Cub 40 ARF Wing Set

Product Info | Fits What?
RESOURCES

Fits What? (1)
GREAT PLANES

GPMA2092
J-3 Cub 40 ARF Wing Set
By GREAT PLANES
Discontinued
No Picture Available

More like this... Aircraft Replacement Part, Wing Kits
But only from... GREAT PLANES


 Inventory Status Legend
Stock availability for on-line ordering
0
$124.99
Warehouse ?
Stock availability for pick up
0
$124.99
Warehouse ?
0
$124.99
Store - Charlottetown ?
0
$124.99
Store - Edmonton ?
0
$124.99
Store - Mississauga ?
0
$124.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

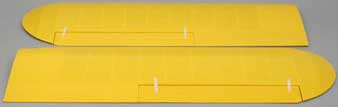

                        This is the Wing Set for the
Great Planes J-3 Piper Cub ARF Airplane.

FEATURES: Pre-built all-wood wing, pre-covered in genuine Coverite 21st Century
fabric covering (cub yellow).

INCLUDES: One left and one right wing half with elevators #2 and 3 from manual.
Two 1/4" hardwood wing dowels part #23 from the manual.
One 1/8" thick plywood wing bolt plate (pre-covered) #11 from manual.
Two 1/8" and one 3/32" wing joiners #21 from the manual.
Hinge sheet

REQUIRES: Epoxy to join wing: GPMR6043
CA glue to install hinges: GPMR6001

SPECS: Wingspan: 81" (2055mm)
Wing Area: 984 sq in (63.5 sq dm)
Wing Loading: 19.9 oz/sq ft (61 g/sq dm)
Airfoil: Clark Y Type, flat bottom

COMMENTS: Here is a list of available replacement parts for the Great Planes
J-3 Piper Cub ARF
Windows: GPMA2090
Cowling: GPMA2091
Tail set: GPMA2093
Fuselage: GPMA2094
Landing Gear: GPMA2095
Wing Struts: GPMA2096

kpm12/20/2000
ir/jl
updt jxs 3/28/04
735557020927 0735557020927
GPMA2092
