GPMA1875

Tigershark Jet w/Motor ARF

Product Info | Replacement Parts
RESOURCES

Replacement Parts (2)
GREAT PLANES

GPMA1875
Tigershark Jet w/Motor ARF
By GREAT PLANES
Discontinued
No Picture Available

More like this... ARF Ducted Fan Electric Aircraft
But only from... GREAT PLANES


 Inventory Status Legend
Stock availability for on-line ordering
0
$83.99
Warehouse ?
Stock availability for pick up
0
$83.99
Warehouse ?
0
$83.99
Store - Charlottetown ?
0
$83.99
Store - Edmonton ?
0
$83.99
Store - Mississauga ?
0
$83.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.

VIDEO



PRODUCT RESOURCES
VENDOR TECHNOTES

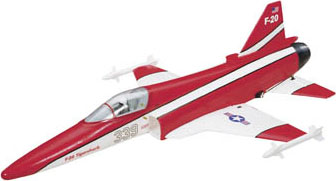

     This is the electric powered, radio controlled, almost ready to fly
ElectriFly F-20 Tigershark Sport Scale Airplane.

FEATURES: Construction: AeroCell foam
Wings: Two-piece with carbon wing spars and pre-hinged ailerons
with removable foam wing tip missiles (for display only)
Canopy: Clear, painted pilot bust and instrument panel decals,
magnetically secured canopy hatch is removable for battery access
Display Stand: Easy tab and slot assembly, foam (NOT AeroCell foam)
construction, use only foam-safe CA to assemble
Motor: Ammo brushless 24-45-3790 with HyperFlow ducted fan unit

INCLUDES: ElectriFly F-20 Tigershark airplane with brushless motor, display
stand, pilot bust, wing tip missiles, ducted fan unit, decals
and instruction manual

REQUIRES: Radio: At least 3 channel with three micro servos & micro receiver
12" (305mm) Slim Wire Extensions: Three, FUTM4507
6" (152mm) Slim Wire Extensions: One, FUTM4130
ESC: 45A brushless motor capable
LiPo Battery: 4S, 14.8V 25C, at least 2200mAh
Battery Charger: LiPo compatible
Building and field equipment

SPECS: Wingspan: 22.5 in (570mm)
Wing Area: 162 sq in. (10.4 sq dm)
Weight: 26.8 oz (760 g)
Wing Loading: 23.8 oz/sq ft (73g/sq.dm.)
Length: 37 in (940mm)
Center of Gravity: 3.75" (95mm) back from the leading edge of the
wing measured at the fuselage
Control Throws- Low Rate High Rate
Elevator 1/4" (7mm) 10 3/8" (10mm) 14
Ailerons 1/4" (7mm) 7.5 3/8" (10mm) 11

COMMENTS; Also available in an RXR version that includes an ESC and servos,
GPMA6010.
