GPMA1816

Kunai 1.4m EP Sport Gilder RXR

Product Info
GREAT PLANES

GPMA1816
Kunai 1.4m EP Sport Gilder RXR
By GREAT PLANES
$299.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... ARF Electric Assist Gliders
But only from... GREAT PLANES


 Inventory Status Legend
Stock availability for on-line ordering
0
$299.99
Warehouse ?
Stock availability for pick up
0
$299.99
Warehouse ?
0
$299.99
Store - Charlottetown ?
0
$299.99
Store - Edmonton ?
0
$299.99
Store - Mississauga ?
0
$299.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.

VIDEO



VENDOR TECHNOTES

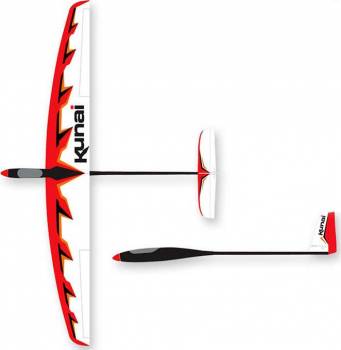

         This is the Great Planes Electric Powered, Radio Controlled
Receiver Ready (Rx-R) 1.4M Kunai Glider.

FEATURES: Construction: Fiberglass fuselage for high strength and low weight,
balsa and ply wing and tail section
Wing: One piece, built-up, factory covered
Aileron Control: Dual servo
ESC: 20A
Servos: Micro
Brushless Motor: 1400kV outrunner type
Propeller: Plastic 8x6 two-blade folding type
Spinner: Red plastic spinner 1.2" (30.5mm) diameter
Warranty: Great Planes Model Manufacturing Company guarantees this
kit to be free from defects in both materials and workmanship at
the date of purchase. This warranty does not cover any component
parts damaged by use or modification.

INCLUDES: Fiberglass fuselage, main wing, tail section, hardware package,
decal sheet, servos and instruction manual

REQUIRES: Radio: 4-5 channel
Mini Receiver: With front-mount plugs
LiPo Battery: 3S at least 1000mAh
Battery Charger: Compatible with selected battery

SPECS: Wingspan: 55" (1395mm)
Length: 36" (915mm)
Wing Area: 308 sq in (19.9 sq dm)
Wing Loading: 9.4 - 10.1 oz/sq ft (29 - 31 oz/sq dm)
Weight Range: 20.0 - 21.5 oz (565 - 610 g)
Center of Gravity (CG): 2-3/4" (70mm) back from leading edge of wing
measured at the fuselage
Control Throws; Low Rate High Rate
Aileron 3/8" (10mm) 13 3/4" (19mm) 27 up 1/2" (13mm) 18 down
Rudder 1/2" (13mm) 24 3/4" (19mm) 37
Elevator 3/16" (5mm) 11 5/16" (8mm) 18
Spoileron 1/2" (13mm) 18 up
