GPMA1574

Electrostik EP 50 ARF

Product Info | Replacement Parts
GREAT PLANES

GPMA1574
Electrostik EP 50 ARF
By GREAT PLANES
$189.99 CAD    199.99
Save $10.00 (5%)

Order Quantity:
No Picture Available

More like this... ARF Park Flyer Electric Aircraft
But only from... GREAT PLANES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$189.99
Warehouse ?
StockStock availability for pick up
0
$189.99
Warehouse ?
0
$189.99
Store - Charlottetown ?
0
$189.99
Store - Edmonton ?
0
$189.99
Store - Mississauga ?
0
$189.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
Nylon Ez Bolts 10-24 (2)
$4.99

Low Profile Axle 4mm (2)
$6.99

Tail Wheel Electrostik RxR/ARF
$15.99

Wing Set Electrostik RxR/ARF
$119.99

SPECIFICATIONS
52.75 in
Wingspan:
589 sq in
Wing Area:
3-3.5 lbs
Weight:
11.7-13.6 oz/ft²
Wing Loading:
45.5 in
Length:
4-channel
Radio Requirements:
3 micro servos
Servo Requirements:
brushless outrunner
Motor Requirements:
45A brushless ESC
ESC Requirements:

FEATURES
  • It’s an entirely new take on the classic "Stik" design that has been a favorite among R/C pilots for years!
  • All flight surfaces are prehinged with control horns mounted to shorten assembly time and ensure perfect alignment.
  • Flight-ready after just one hour of simple assembly — with no gluing!
  • Rx-R version comes with a quality ElectriFly brushless power system and three ES80 micro servos — just add a receiver and battery.

For many years the Stik design has been a staple at the flying field, and now ElectriFly has equipped it with clean, quiet electric power! Glow pilots considering an electric aircraft will find familiarity in the ElectroStik’s quality wood construction and traditional look. Modelers who enjoy the advantages of brushless motors have the opportunity to experience flying an R/C classic. And everyone will appreciate how easy it is to get to the flight line — especially with the Receiver-Ready (Rx-R) version!





click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
VENDOR TECHNOTES

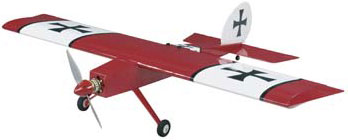

     This is the electric powered, radio controlled, almost ready to fly
Great Planes ElectroStik EP Sport Airplane.

FEATURES: Construction: Balsa and ply with prehinged flight surfaces and
preinstalled control horns
Wings: Two piece with carbon fiber wing joiner
Covering: Top Flite MonoKote
Aileron Control: Single servo, servo trays in wings for optional dual
servo control
Landing Gear: Prebent and painted aluminum
Wheels: Main-two foam 2.25" (57mm) diameter, tailwheel .75" (19mm)
diameter
Spinner: Constructed of plastic, red in color, 2.25" (57mm) diameter
Hardware: Full set included
Building Time: Approximately two hours
Warranty: Great Planes Model Manufacturing Company guarantees this
kit free from defects in both materials and workmanship at date
of purchase.

INCLUDES: Great Planes ElectroStik EP ARF with landing gear, wing joiner tube,
three foam wheels, spinner, hardware and instruction manual

REQUIRES: Radio: 4-channel
Servos: 3-micro
6" (152mm) Extension: For aileron servo
Motor: Rimfire brushless outrunner 42-40-1000kV GPMG4675 or
42-50-800kV GPMG4700
ESC for Brushless Motors: GPMM1840
Battery: LiPo 3200mAh 11.1V 20C Discharge w/Balance connector
Cell Balancer
Battery Charger: LiPo compatible
Propeller: 11x8.5E

SPECS: Wingspan: 52.75" (1340mm)
Wing Area: 589 sq in (38 sq dm)
Weight: 3 - 3.5lb (1360 - 1587g)
Airfoil: Semi symmetrical
Wing Loading: 11.7 - 13.6oz/sq ft (36 - 42g/sq dm)
Length: 45.5" (1155mm)
Center of Gravity: 3-5/8" (92mm) back from leading edge of wing at
fuselage

Control Throws- Low Rate High Rate
Elevator up & down: 1/8" (3.2mm) 5 1/4" (6.4mm) 10
Rudder right & left: 5/8" (15.9mm) 25 1-1/8" (28.6mm) 50
Ailerons up & down: 3/8" (9.5mm) 15 1/2" (12.7mm) 20

COMMENTS: Following are the MonoKote colors used on this model and stock
numbers for six foot rolls;
Missile Red, TOPQ0201
Jet White, TOPQ0204

Also available as an RXR (receiver ready) version that includes
servos, prop, ESC and motor, GPMA7500.

jxs 4/29/08
ir/jxs
735557015749 0735557015749
GPMA1574
