GPMA1250

QuikV6 Q500 ARF

Product Info | Replacement Parts
RESOURCES

Replacement Parts (7)
GREAT PLANES

GPMA1250
QuikV6 Q500 ARF
By GREAT PLANES
$269.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... ARF Sport R/C Aircraft 40-50
But only from... GREAT PLANES


 Inventory Status Legend
Stock availability for on-line ordering
1
$269.99
Warehouse ?
Stock availability for pick up
1
$269.99
Warehouse ?
0
$269.99
Store - Charlottetown ?
0
$269.99
Store - Edmonton ?
0
$269.99
Store - Mississauga ?
0
$269.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
52 in
Wingspan:
503 sq in
Wing Area:
16.5-17.2 oz/ft²
Wing Loading:
40.5 in
Length:
3.7 lbs
Weight:
4 or more Channels
Radio Requirements:
.40-.55 cu in
2-Stroke Engine Requirements:


VIDEO



PRODUCT RESOURCES
VENDOR TECHNOTES

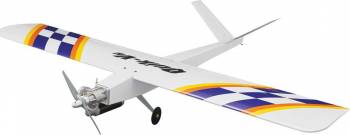

       This is the Radio Controlled, Glow Powered, Almost Ready to Fly
Great Planes QuikV6 Q500 Jim Allen Pylon Racer.
Designed by Jim Allen, a multi-time national champion pylon racer.
For experienced to expert pilots

**This pylon racer reaches speeds well over 100 mph (160 km/h)**
**when equipped with the recommended racing power system,**
**and should only be flown at an approved AMA flying site.**

FEATURES: Construction: Built-up balsa and ply, internal V-tail linkages for
less drag
Wing: One-piece wood and foam construction, semi-symmetrical
configuration
Covering: Top Flite MonoKote, all white to enable pilot to design
their own trim scheme
Wheels: Low drag nylon
Engine Mount: Aluminum
Fuel Tank: 6oz (180cc)

INCLUDES: Prebuilt and Covered Wing, Fuselage and Tail Assemblies with Wheels,
Engine Mount, Hardware Package and Instruction Manual

REQUIRES: Radio: 4-channel with V-tail mixing
Servos: Four mini, 50 oz-in minimum torque
Engine: .40-.55 2-stroke
Building and field equipment

SPECS: Length: 40.5" (1030mm)
Wingspan: 52" (1320mm)
Weight: 3.6 - 3.75lbs (1630 - 1700g)
Wing Area: 503 sq in (32.4 sq dm)
Wing Loading: 16.5 - 17.2 oz sq/ft (50 - 52.5 g/sq/dm)
Wing Type: Semi-symmetrical
Center of Gravity (CG): 3" (76mm) back from the leading edge of the
wing measured at the fuselage
Control Throws: Low Rate High Rate
Elevator: 5/32" (4mm) 7.3 7/32" (6mm) 10.2
Rudder: 1/8" (3mm) 5.8 7/32" (6mm) 10.2
Ailerons: 5/32" (4mm) 7.2 7/32" (6mm) 10.2

COMMENTS: If a replacement fuel tank is needed the Sullivan 6oz (SULQ1426),
or the DuBro 6oz (DUBQ0206) can be used.
Some modification and trimming to the fuselage may be
required when installing any aftermarket tank.

jxs 04/01/16
ir/jxs
