GPMA1180

Slinger ARF Electric

Product Info | Required Items | Replacement Parts
RESOURCES

Items Required to Complete (5)
Replacement Parts (7)
Manual/Diagram
Manual
GREAT PLANES

GPMA1180
Slinger ARF Electric
By GREAT PLANES
Discontinued
Click to Enlarge
click to enlarge

More like this... ARF Electric Aircraft
But only from... GREAT PLANES


 Inventory Status Legend
Stock availability for on-line ordering
0
$94.99
Warehouse ?
Stock availability for pick up
0
$94.99
Warehouse ?
0
$94.99
Store - Charlottetown ?
0
$94.99
Store - Edmonton ?
0
$94.99
Store - Mississauga ?
0
$94.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
47.5 in
Wingspan:
459 sq in
Wing Area:
7.2 oz/ft²
Wing Loading:
23 oz
Weight:
3-Ch, 2-Mini Servo
Radio:
SPEED 400
Motor:

FEATURES
  • Assembles in a half-hour or less — no building or painting required.
  • Rugged and resilient expanded foam parts offer outstanding resistance to rips, bends and breaks.
  • Easy to transport. Spans just under four feet and has no landing gear to bend or break.
  • Goes aloft with a hand launch and skids to a landing on its belly.
  • Included winglets attach with epoxy and stabilize flight throughout the entire performance envelope.
  • Precision-formed cockpit and simulated engine nacelles duplicate the looks of the mighty B2 bomber.
  • Center section offers ample room for all on-board gear — cockpit covers and protects gear, yet allows quick, easy access for pack changes or maintenance.

Every ARF should be this easy to enjoy! The only things required to make the Slinger ARF flight-ready are 6-minute epoxy and 20-30 minutes of easy assembly. All-foam parts make it a snap to assemble and tough to damage — electric power makes it great for quick, "grab n' go" flying. A Speed 400 motor and prop provide the power for astonishing stunts at a wide range of speeds. Rock-solid stability and B2 bomber looks provides pilots with the inspiration — and confidence — to try almost anything!

(Note: Requires radio system and electronics for completion)

click image to enlarge
ADDITIONAL PHOTOS
PRODUCT RESOURCES
VENDOR TECHNOTES
               This is the Radio Controlled, Electric Powered,
Great Planes Slinger Almost Ready-to-Fly Expanded Foam Flying Wing Kit
Park Pilot Program Legal Aircraft
For Intermediate to Advanced Modeler/Fliers.

FEATURES: Construction: Expanded foam, is resistant to rip, bend, and break
Wings: One piece foam with ABS plastic winglets to add stability
covered in heat shrink film
Motor: Speed 400 size with prop
Radio compartment: concealed underneath ABS center section
Assembly Time: Approximately 30 minutes
Warranty: Great Planes Model Manufacturing Company guarantees this
kit to be free from defects in both materials and workmanship at
date of purchase.

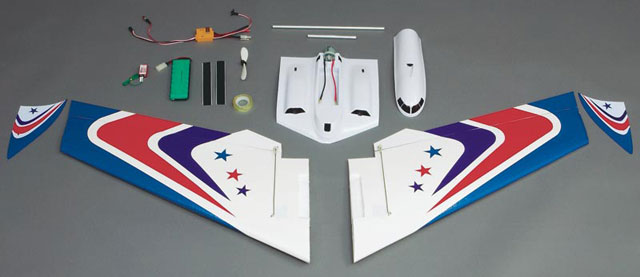

INCLUDES: Speed 400 motor with two props, two wing halves, center section,
canopy, Velcro tape strip, pushrods with tubes, wing fins, decals,
control horns, battery connector, photo-illustrated instructions,
nylon tie strap, wing tape, and center section tape.

REQUIRES: Battery: 2S, 7.4V LiPo, such as the FlightPower FP25 series 2S
7.4V 4000mAh, FPWP2402 recommended
ESC: LiPo compatible, for Speed 400 motor, such as the Great Planes
C-25, GPMM2025, (A Male Ultra Plug with Pigtail, WSDM2013 must be
soldered to the ESC's motor leads to mate with the stock Slinger
motor)
Charger: LiPo compatible
Radio: 3 or 4 channel w/electronic mixing(or optional mixer GPMA2428)
Servos: 2 mini (min. of 15 oz-in torque)
Speed Control: 15A Electronic
Glue: 6 minute epoxy (GPMR6042)
Misc. Items: Building and Field Equipment

SPECS: Wingspan: 47.4" (1204mm)
Wing Area: 462.8sq in (29.85sq dm)
Weight: 27oz (765g)
Wing Loading: 8.4 oz/sq ft (25.6 g/sq dm)
Center of Gravity: 8" (203mm) Back from front tip of plane inverted

Control Throws: Low Rate High Rate
Elevator, up and down: 3/8" (9.5mm) " (12.7mm)
Ailerons, up and down: " (12.7mm) " (19mm)

jxs 2/25/03
***updated*** cmc 06/03/03
ir/jxs
***updated*** NNA 08/27/03
updated WM 6/21/05
updt lmm 02.08.10
UPDT JMM 30APR15
735557011802 0735557011802
GPMA1180
