GMA56000

1/10 GR01 GOM Rock Buggy

Product Info | Replacement Parts | Optional Items
GMA56000
1/10 GR01 GOM Rock Buggy
By GMADE
$479.99 CAD
FREE SHIPPING over $99
Details »
Order Quantity:
Click to Enlarge
click to enlarge

More like this... R/C Electric Scale Trail & Scale Truck Kits
But only from... GMADE
All items from... GMADE


 Inventory Status Legend
StockStock availability for on-line ordering
0
$479.99
Warehouse ?
StockStock availability for pick up
0
$479.99
Warehouse ?
0
$479.99
Store - Stratford ?
0
$479.99
Store - Edmonton ?
0
$479.99
Store - Mississauga ?
0
$479.99
Store - Ottawa ?
0
$479.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
GR01 Rear Secondary Shock 113mm (Silver) (2)
$34.99

12.7x0.7mm Pin Retaining Ring (2)
$2.99

Transfer Output Rear Shaft Set GOM
$19.99

GA60 Axle Gear and Hardware Set GOM
$29.99
GOM Body Panel (Clear)
$16.99

GR01 Transmission & Transfer Case Gear Set GOM
$24.99

GOM Decal Sheet
$12.99

Cage Top & Rear Parts Tree GOM
$29.99
SPECIFICATIONS
523 mm
Length:
318 mm
Width:
248 mm
Height:
2 kg
Weight:
88 mm
Ground Clearance:
380 mm
Wheelbase:

FEATURES
  • Full Tube Frame Chassis
  • 2 Speed Transmission
  • DIG System
  • Front Weight Balance
  • 4 Wheel Drive
  • Chassis Mount Servo System with Panhard Bar

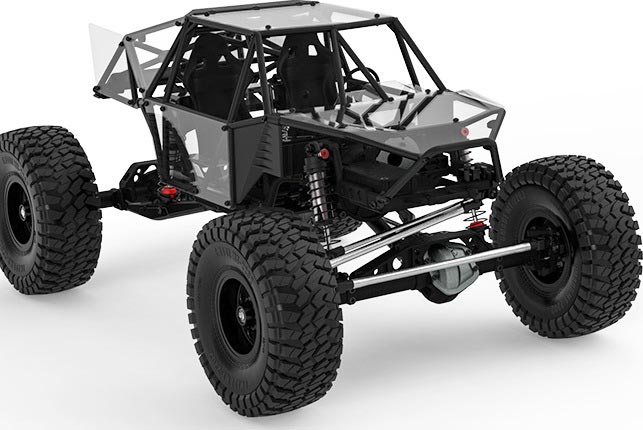

The GOM (translates to "Bear") features a lightweight, extremely rigid tube chassis that not only looks extremely scale, but protects against impact. The steering servo is mounted to the chassis, and bump steer has been minimized to provide the best possible steering performance. The dustproof receiver box and easy access battery door provide plenty of space for your components.

The GOM's front weight balance is designed to increase traction to the front wheels, improving climbing on steep angles and minimizing roll-overs.

The 2 speed transmission, and transfer case with built in dig function, are designed to enhance the scale appearance of the vehicle. Drivetrain efficiency has been improved by lowering the transfer case and reducing the driveline angle. The dual pad slipper holds the spur gear firmly and evenly, making precision settings easy to achieve.

The GA60 axles are structurally reinforced with an axle truss to not only reduce the risk of breakage, but to give a great scale appearance. They feature Hi Steer Zero Ackerman Knuckle Arms for improved clearance and a tight turning radius.

Suspension utilizes 103mm aeration coil-over shocks for smooth driving on rough surfaces. Shock bodies are CNC machined, and 3.5mm shock shafts provide high durability. Rebound can be adjusted without disassembling the shock by simply using the aeration shock cap screw.

GT02 wheels and MT2202 2.2" tires are included.

Body panels are clear, so you can create your own unique paint scheme
