FUTS9001

Servo - Coreless BB Air

Product Info | Replacement Parts
FUTABA

FUTS9001

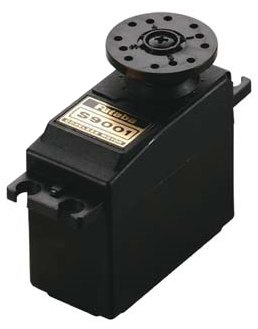

Servo - Coreless BB Air
By FUTABA
FREE SHIPPING over $99
Details »
Discontinued
No Picture Available

More like this... Servos Analog
But only from... FUTABA
All items from... FUTABA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$69.99
Warehouse ?
StockStock availability for pick up
0
$69.99
Warehouse ?
0
$69.99
Store - Stratford ?
0
$69.99
Store - Edmonton ?
0
$69.99
Store - Mississauga ?
0
$69.99
Store - Ottawa ?
0
$69.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Horn Screws Std (10)
$5.99

Gear Set - S148
$8.99

SPECIFICATIONS
0.78 x 1.59 x 1.48 in
Dimensions:
1.7 oz
Weight:
72.2 oz-in
Torque @ 6.0V:
54.1 oz-in
Torque @ 4.8V:
0.18 sec/60°
Speed @ 6.0V:
0.22 sec/60°
Speed @ 4.8V:

FEATURES
  • Single Ball Bearing
  • Coreless Motor

The Futaba S9001 is an economical coreless, ball bearing servo, ideal for use in aircraft or helicopters.

A note on coreless motors

A conventional servo motor has a steel core armature wrapped with wire that spins inside the magnets. In a coreless design, the armature uses a wire mesh that forms a cup that spins around the outside of the magnet. This arrangement is much lighter resulting in smoother operation and faster response time.

click image to enlarge

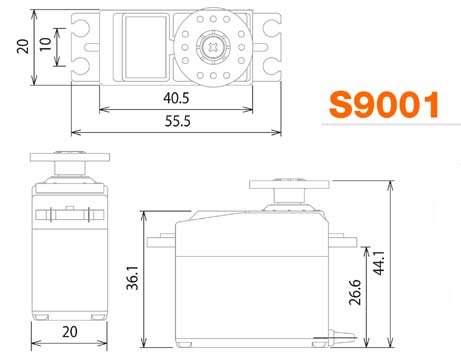

ADDITIONAL PHOTOS

PRODUCT RESOURCES
