FUTS3802

Servo - Sailarm BB MG

Product Info | Replacement Parts
FUTABA

FUTS3802
Servo - Sailarm BB MG
By FUTABA
FREE SHIPPING over $99
Details »
Discontinued
Click to Enlarge
click to enlarge

More like this... Servos Analog
But only from... FUTABA
All items from... FUTABA


 Inventory Status Legend
StockStock availability for on-line ordering
0
$99.99
Warehouse ?
StockStock availability for pick up
0
$99.99
Warehouse ?
0
$99.99
Store - Stratford ?
0
$99.99
Store - Edmonton ?
0
$99.99
Store - Mississauga ?
0
$99.99
Store - Ottawa ?
0
$99.99
Store - Oshawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availability.
Best selling related parts, options and upgrades...
Screw Metal Gear Servo (10)
$8.99

Sail Servo Arm - S3801/S125
$8.99

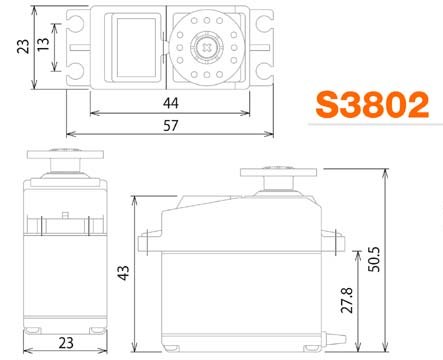

SPECIFICATIONS
0.91 x 1.73 x 1.69 in
Dimensions:
2.54 oz
Weight:
122.1 oz-in
Torque @ 4.8V:
152.7 oz-in
Torque @ 6.0V:
0.70 sec/60°
Speed @ 4.8V:
0.56 sec/60°
Speed @ 6.0V:

FEATURES
  • Dual Ball Bearing supported output for smooth, efficient operation
  • Rubber gaskets to provide protection from water
  • 4¼ inch control arm included
  • Metal gears with a special interference-eliminating lubricant to handle high-torque applications
  • 3-Pole Motor

This servo replaces the S125 servo
