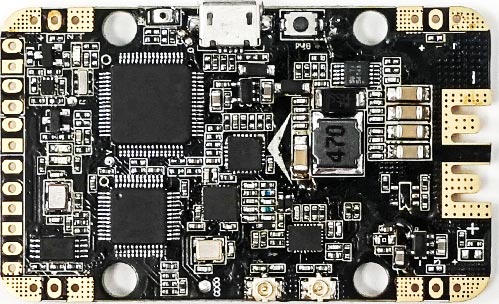

Flight Controller F4/PDB w/XSR Receiver/Telemetry/OSD/PDB 36x6
Discontinued
|
click to enlarge
|
More like this... Multirotor Helicopters, Flight Control Systems
But only from... FRSKY ELECTRONIC
All items from... FRSKY ELECTRONIC
But only from... FRSKY ELECTRONIC
All items from... FRSKY ELECTRONIC
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
SPECIFICATIONS
60 mm
Length:
36 mm
Width:
6 mm
Height:
14 g
Weight:
Up to 6 Cells
Voltage:
FEATURES
- Built-in F4 and XSR receiver module
- Built-in onboard PDB up to 6S integrate with current sensor
- Features the latest Accelerometer and Gyro technology.
- XSR receiver is a full duplex telemetry receiver, it will receive the commands of radios and send to F4 by SBUS (8CH is RSSI) to UART1 of F4, it can also send telemetry information back to radio by Smart Port.

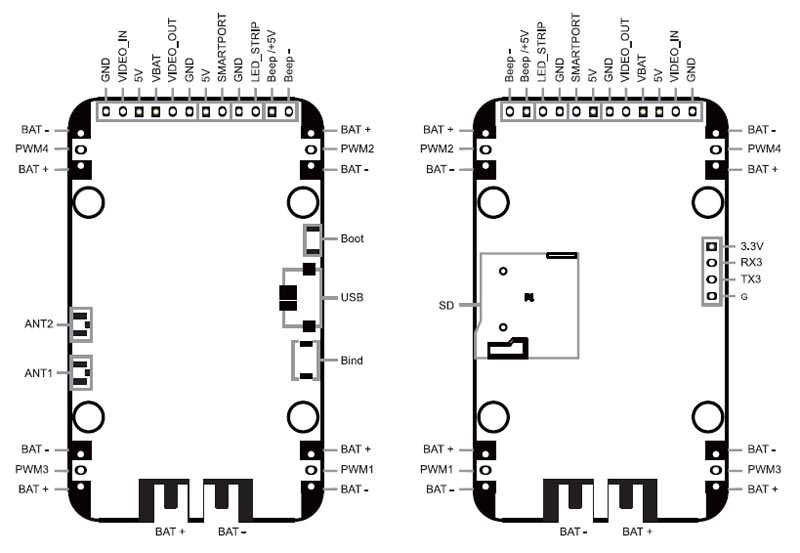

- 6 PWM output signal lines for ESCs and Servos. Arranged for easy wiring on standard pin headers.
- OSD configuration has been included in Betaflight GUI.
click image to enlarge
ADDITIONAL PHOTOSXSRF4PO
