FRSFSD

FrSky Dashboard Smart Port Data Display

Product Info
RESOURCES

Manual/Diagram
Product Manual version 140930
FRSKY ELECTRONIC

FRSFSD

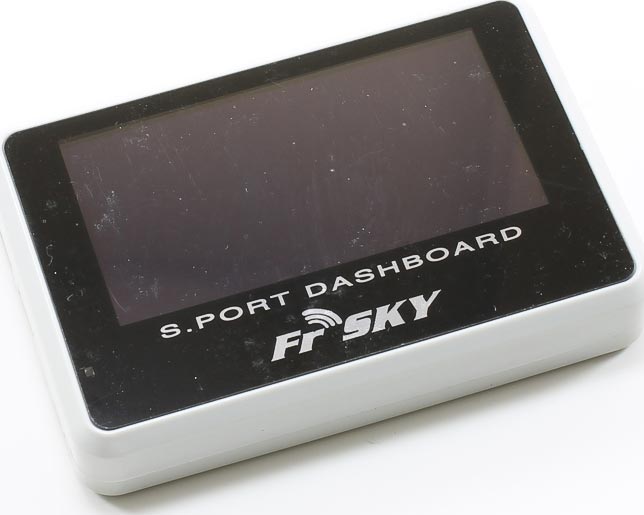

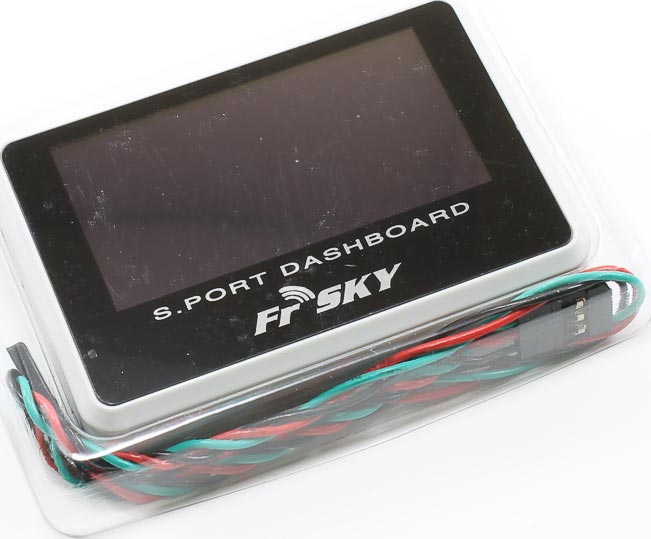

FrSky Dashboard Smart Port Data Display
By FRSKY ELECTRONIC

Overstock! 1 Only Available @
$55.55 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Telemetry Systems
But only from... FRSKY ELECTRONIC


 Inventory Status Legend
Stock availability for on-line ordering
1
$55.55
Overstock! 1 Only Available @
Warehouse ?
Stock availability for pick up
1
$55.55
Overstock! 1 Only Available @
Warehouse ?
0
$55.99
Store - Charlottetown ?
0
$55.99
Store - Edmonton ?
0
$55.99
Store - Mississauga ?
0
$55.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
75 mm
Length:
50 mm
Width:
13.8 mm
Height:
128 x 64 pixels
Screen Resolution:
4.8-6 V
Voltage Range:

FEATURES
  • Show all connected sensors data;
  • Capable of programming alarm thresholds and system settings;
  • Set Physical ID and Group Number for S.Port sensors;
  • Firmware upgradeable for all S.Port products.
  • OLED display makes the display very usable day or night.

The perfect companion to the XJT module or DHT add in telemetry module this Dashboard displays all telemetry data available from your aircraft. Airspeed, GPS, Current draw, RPM etc.  Add it to your favorite radio and enjoy all the benefits of FrSky telemetry has to offer.

The Dashboard also acts as a sensor firmware update Wallet. Sensors, receivers and XJT transmitter modules can have their firmware updated without connecting to a computer for having to be removed from their airframes.

click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES

CAD
