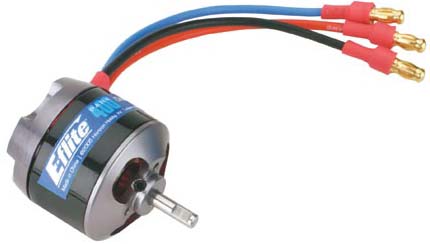

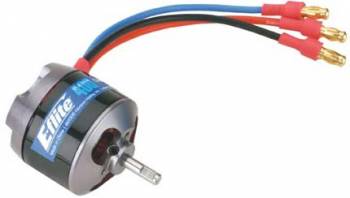

Park 400 Outrunner 740kV
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|
|
|||||||||||||||||||||||||||||||
SPECIFICATIONS
Brushless Outrunner
Motor Type:
370/400 Range
Motor Size:
10x4.7 to 12x3.8
Prop Range:
7.2-12
Voltage Range:
740 rpm
RPM/V:
.26 ohms
Resistance:
.54 @ 10V
Idle Current:
1/8 in
Shaft Diameter:
29 mm
Overall Length:
2 oz
Weight:
28 mm
Diameter:
7 A
Continuous Current:
10 A
Max Burst Current:
6-10 Cells
NiCd/NiMH Cells:
2-3 Cells
Li-Po Cells:
FEATURES
- Slotted 12-pole outrunner design
- Prop Adapter (EFLM1923) and gold-plated connectors included
- Excellent motor for small 3D and scale park flyers 10 oz - 20 oz (280 g - 560 g)
- Motor Mount included
- Replacement for Speed 370 and Speed 400 applications
- Quiet operation\Low noise compared to gearbox systems
Their great performance and small size make them perfect for small 3D and other park flyer models. The external rotor design eliminates the need for a gearbox, saving you valuable weight to get the maximum performance out of the model.
Needed To Complete
10–20A brushless ESC
10x7 to 12x3.8 prop
7.4V or 11.1V 860–1320mAh Li-Po
