EFLM1120

Park 180 Brushless Motor 2200KV

Product Info
E-FLITE

EFLM1120
Park 180 Brushless Motor 2200KV
By E-FLITE
$39.99 CAD    44.99
Save $5.00 (11%)

Order Quantity:

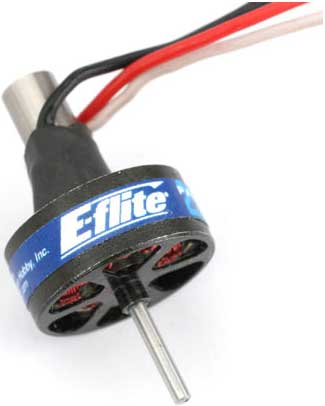

Click to Enlarge
click to enlarge

More like this... Electric Aircraft Motors
But only from... E-FLITE
All items from... E-FLITE


 Inventory Status Legend
StockStock availability for on-line ordering
0
$39.99
Warehouse ?
StockStock availability for pick up
0
$39.99
Warehouse ?
0
$39.99
Store - Charlottetown ?
0
$39.99
Store - Edmonton ?
0
$39.99
Store - Mississauga ?
1
$29.97
Overstock! 1 Only Available @
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
Brushless Outrunner
Type:
180
Size:
4.8-11.1 V
Voltage:
2200
RPM/V (Kv):
.91 ohms
Resistance (Ri):
.30A @ 8V
Idle Current (lo):
2.6 A
Continuous Current:
3.6 A
Max Burst (15 sec):
2-3 Cells
Li-Po Cells:
4-8 Cells
NiCd/NiMH Cells:
8.5 g
Weight:
16 mm
Overall Diameter:
1.5 mm
Shaft Diameter:
20 mm
Overall Length:

FEATURES
  • Includes prop adapter
  • Includes mount, mounting hardware and 2mm gold BL connectors
  • Up to 30 watts
  • 4- to 8-cell Ni-Cd/Ni-MH or 2–3S Li-Po
  • Designed for firewall mount or carbon tube mount
  • High-torque, direct-drive alternative to inrunner brushless motors
  • Extremely quiet and lightweight—just .3 oz (8.5 g)
  • Ideal for indoor and outdoor small aerobatic park flyers
  • Ideal for 3D models weighing 2–3 oz (55–85 g) and sport and scale models weighing 3–6 oz (85–170 g)
  • Upgraded performance for indoor motors
  • High-quality construction with ball bearings and hardened steel shaft

Required to complete:
4-6A Brushless ESC
2-3S Li-Po or 4-8 cell Ni-Cd/Ni-MH
3x3 Direct Drive Prop
