EFLM1105

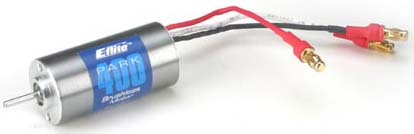

Park 400 Brushless Motor 3700k
By E-FLITE
Discontinued
Click to Enlarge
click to enlarge

More like this... Electric Aircraft Motors
But only from... E-FLITE


 Inventory Status Legend
Stock availability for on-line ordering
0
$56.99
Warehouse ?
Stock availability for pick up
0
$56.99
Warehouse ?
0
$56.99
Store - Charlottetown ?
0
$56.99
Store - Edmonton ?
0
$56.99
Store - Mississauga ?
1
$56.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
SPECIFICATIONS
Brushless Inrunner
Motor Type:
Park 400
Motor Size:
9x7 to 12x6
Prop Range:
7.2-12 v
Voltage Range:
3,700 rpm
RPM/V:
.11 ohms
Resistance:
.8A @ 10V
Idle Current:
2 mm
Shaft Diameter:
40 mm
Overall Length:
68 g
Weight:
20 mm
Diameter:
15 A
Continuous Current:
20 A
Max Burst Current:
6-10 Cells
NiCd/NiMH Cells:
2-3 Cells
Li-Po Cells:

FEATURES
  • Upgrade for your Speed 400 applications
  • Excellent motor for small airplanes between 12 oz – 26 oz (340 g – 740 g)
  • Adapter plate included for mounting to GWS and E-flite style gearboxes
  • Slotless 2-pole design
  • Prop adapter and gold-plated connectors included

Get better and more efficient performance from your sport and aerobatic park flyers with E-flite's Park 400 brushless motor. Once you experience the enhanced power of the Park 400 you'll soon realize it's a jump up from Speed 400 applications.
