EFLG210

15-25 85deg Main Electric Retracts

Product Info | Replacement Parts
E-FLITE

EFLG210
15-25 85deg Main Electric Retracts
By E-FLITE
Discontinued
Click to Enlarge
click to enlarge

More like this... Aircraft Accessories, Retracts Mains
But only from... E-FLITE
All items from... E-FLITE


 Inventory Status Legend
StockStock availability for on-line ordering
0
$99.99
Warehouse ?
StockStock availability for pick up
0
$99.99
Warehouse ?
0
$99.99
Store - Charlottetown ?
0
$99.99
Store - Edmonton ?
0
$99.99
Store - Mississauga ?
0
$99.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
Best selling related parts, options and upgrades...
10 - 15 Dual Plug Y Harness
$9.99

.15-.25 Left Main Wire Strut
$5.99

.15-.25 Right Main Wire Strut
$5.99

.15-.25 Electric Main Retract Unit 85-Deg
$59.99
SPECIFICATIONS
Aircraft 15-25 size
Application:
1.25 sec @ 4.8V; 1.00 sec @ 6.0V; 0.75 sec @ 7.4V
Speed:
Main gear: 1.4 oz (39.5g) each
Weight:
Electric brushed can
Motor Type:
JR, universal
Connector Type:
Metal
Gear Type:
5mA
Current Draw Idle:
200mA
Current Draw Stall:
4.8V-7.4V
Voltage:

FEATURES
  • Robust landing gear strut and mounting bracket
  • Integrated electric motor with a micro PCB
  • Built-in overcurrent protection
  • Strut Diameter: 0.137 in (3.5mm)
  • Aircraft Weight: 4.00 - 7.00 lb (1.80 - 3.10kg)

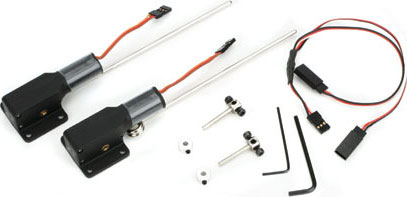

 Add the realism of functioning retracts to your 15- to 25-sized airplanes. E-flite's completely self-contained retract systems require no air tanks, complex linkages, or even extra servos. They simply need to be bolted into place and plugged into the receiver. A specially designed Y-harness is also included, allowing pilots to use a single receiver channel to control all retract units.


click image to enlarge
ADDITIONAL PHOTOS

PRODUCT RESOURCES
