40-Amp Pro Switch-Mode Bec Brushless ESC (v2)

Product Info

40-Amp Pro Switch-Mode Bec Brushless ESC (v2)
$104.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Aircraft Electronic Speed Controls (ESC)
But only from... E-FLITE
All items from... E-FLITE

 Inventory Status Legend
StockStock availability for on-line ordering
Warehouse ?
StockStock availability for pick up
Warehouse ?
Store - Charlottetown ?
Store - Edmonton ?
Store - Mississauga ?
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
40 A
Max Continuous Current:
62 g
68 mm
33 mm
13 mm
3-6 Cells
LiPo Cells:
9-18 Cells
NiMH/NiCd Cells:

  • Up to 40 amps continuous current with proper air flow and 55 amps burst current (15 seconds)
  • 5A continuous current, 5V Switch-Mode BEC Circuit (Proper cooling and airflow required)
  • Stronger BEC for support of most 3-axis stabilization systems
  • Drive up to 7 analog or 6 digital standard-sized servos with the BEC
  • 3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage
  • Finned heat sinks
  • Programmable motor braking
  • Safe power-arm mode prevents accidental starts
  • Programmable low voltage cutoff with settings for 3-cell Li-Po (9V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 70% of battery starting voltage
  • Programmable throttle input range
  • Programmable soft start for helis and airplanes
  • Auto motor shut down if signal is lost or there is interference
  • Programmable timing—5 user-selectable ranges to use with a large variety of brushless motors
  • Utilizes new smaller Mosfet technology to minimize weight
  • Radio System Power ON /OFF Switch

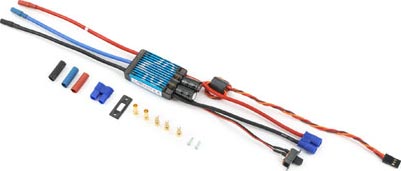

  • Prewired connectors—E-flite EC3™ connector on battery input and 3.5mm gold bullet connectors on motor output leads

E-flite® 40-Amp Pro Switch-Mode BEC Brushless ESC (V2) is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.
