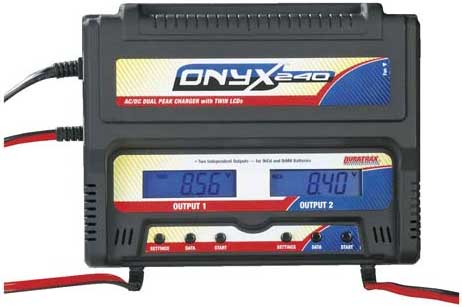

Onyx 240 AC/DC Dual Chrg w/LCD
 |
|
|
Discontinued
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|
|
|||||||||||||||||||||||||||||||
SPECIFICATIONS
110V AC 60Hz
AC Input:
11-15V DC
DC Input:
750-7500mAh
Battery Capacity Range:
0.8A, 1.5A, 3A, 5A linear
Fast Charge Current:
Peak detection
Fast Charge Termination:
90 minutes
Fast Charge Safety Timer:
8mV for NiCd, 4mV for NiMH
Peak Sensitivity:
1/20 fast chg setting, rounded to 50mA
Auto Trickle Current:
3-pushbuttons
Controls:
7 segment custom LCD with blue backlight
Display Type:
Solid-state reverse polarity and current overload
Protective Devices:
7.95 x 6 x 1.97 in
Dimensions:
27.8 oz
Weight:
FEATURES
- Charges 4-8 cell NiCd or NiMH (4.8 - 9.6V) cells
- Two independent outputs each with identical features and functions
- Selectable charge currents of 800mA, 1.5A, 3A and 5A with auto-trickle for each output
- NiCd and NiMH compatibility with custom peak detections-each output
- Built-in jack for charging 4 - 5 cell receiver packs for nitro models
- LCD with blue backlight shows battery voltage, charge time and capacity-one for each output
- Simple pushbutton controls and audible tones aid in setup and use for each output
- Solid state reverse polarity and current overload protection ensure trouble-free operation
- Comes equipped with standard Tamiya connectors
Excellent for electric powered models which use two NiCd or NiMH batteries simultaneously, or modelers who rotate through multiple batteries while at the field or the track. Less time charging batteries – more time having fun! Charge currents of 800mA, 1.5A, 3A, and 5A plus 4-8 cell NiCd or NiMH compatibility make this charger great for batteries for 1/18 to 1/8 scale electrics, nitro receiver packs, and even transmitter batteries! A tiny, lightweight switching AC power supply is built-in, DC input capability and twin LCDs with blue backlights make this charger easy to transport and use in any environment.
