DLE61-Z17

Carburetor Complete DLE-61

Product Info
DL ENGINES

DLE61-Z17
Carburetor Complete DLE-61
By DL ENGINES
$54.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Replacement Motor Parts
But only from... DL ENGINES
All items from... DL ENGINES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$54.99
Warehouse ?
StockStock availability for pick up
0
$54.99
Warehouse ?
0
$54.99
Store - Charlottetown ?
0
$54.99
Store - Edmonton ?
0
$54.99
Store - Mississauga ?
0
$54.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
VENDOR TECHNOTES

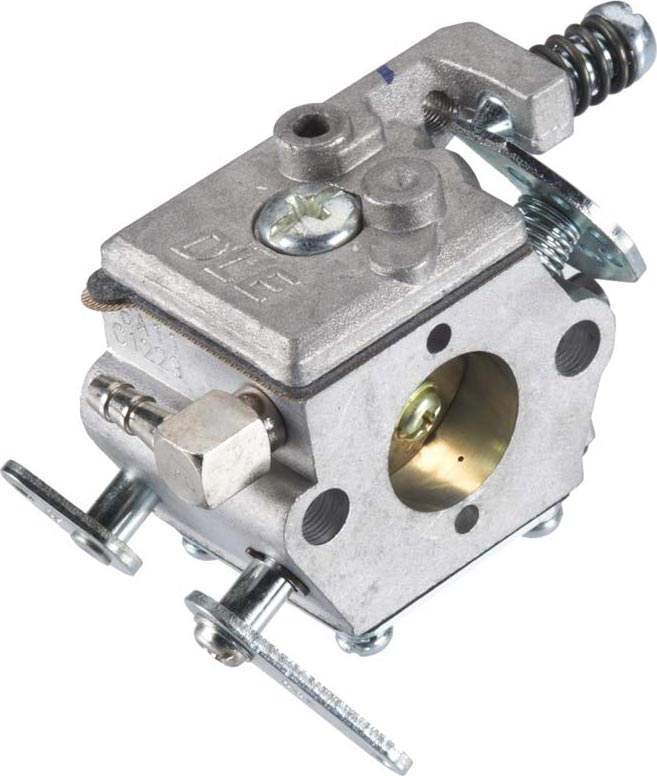

      This is the Complete Carburetor for the DLE-61cc Engine, DLEG0061.

FEATURES: Aseembled and ready to install

INCLUDES: Complete Carburetor, key #17

SPECS: Carburetor Settings; (carb is preset at factory and should require
only small adjustments)
Idle Adjustment Screw: Turn clockwise to increase idle speed,
conterclockwise to decrease idle speed
Low Speed Needle: Turn needle to fully closed position, then open
1.25 turns
High Speed Needle: Turn needle to fully closed position, then open
1.5 turns-tachometer is recommended when setting high speed
needle to obtain maximum speed
jxs 05/14/14
COMMENTS: Carburetor Gasket (DLEG8510) not included. ir/jxs
UPGX3/16/17
667300861177 0667300861177
DLEG6117
