Home » Product Info »
DLE55-A17

Carburetor Complete DLE-55

Product Info
DL ENGINES

DLE55-A17
Carburetor Complete DLE-55
By DL ENGINES
$54.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Replacement Motor Parts
But only from... DL ENGINES
All items from... DL ENGINES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$54.99
Warehouse ?
StockStock availability for pick up
0
$54.99
Warehouse ?
0
$54.99
Store - Charlottetown ?
0
$54.99
Store - Edmonton ?
0
$54.99
Store - Mississauga ?
0
$54.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
VENDOR TECHNOTES

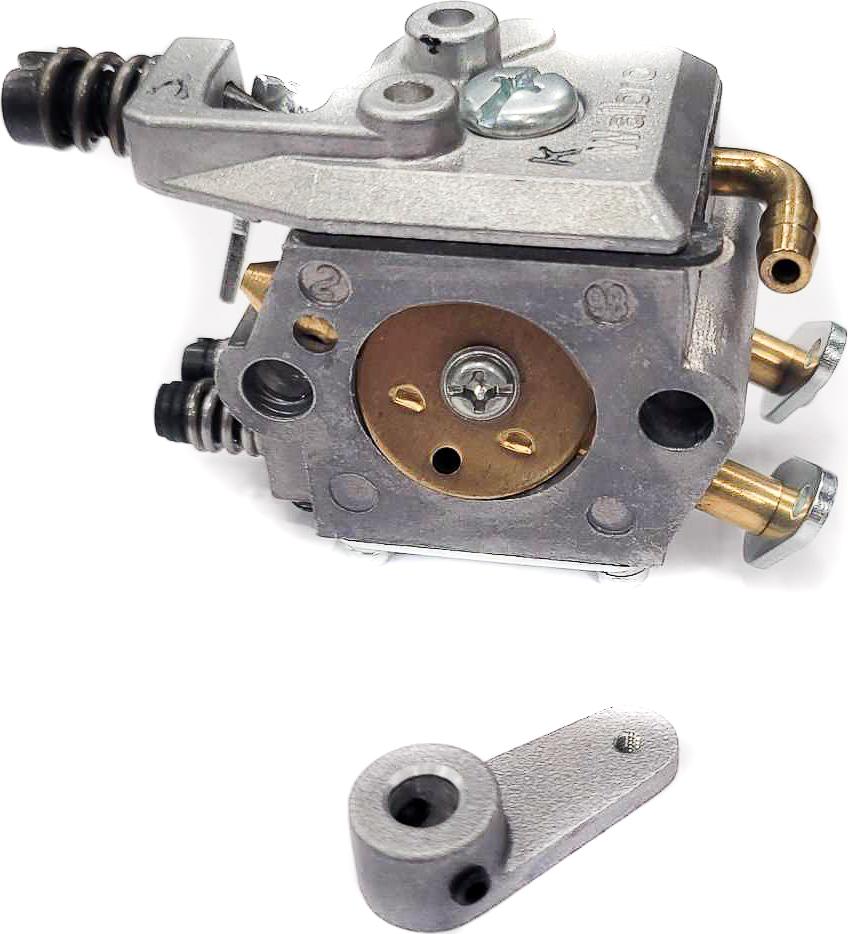

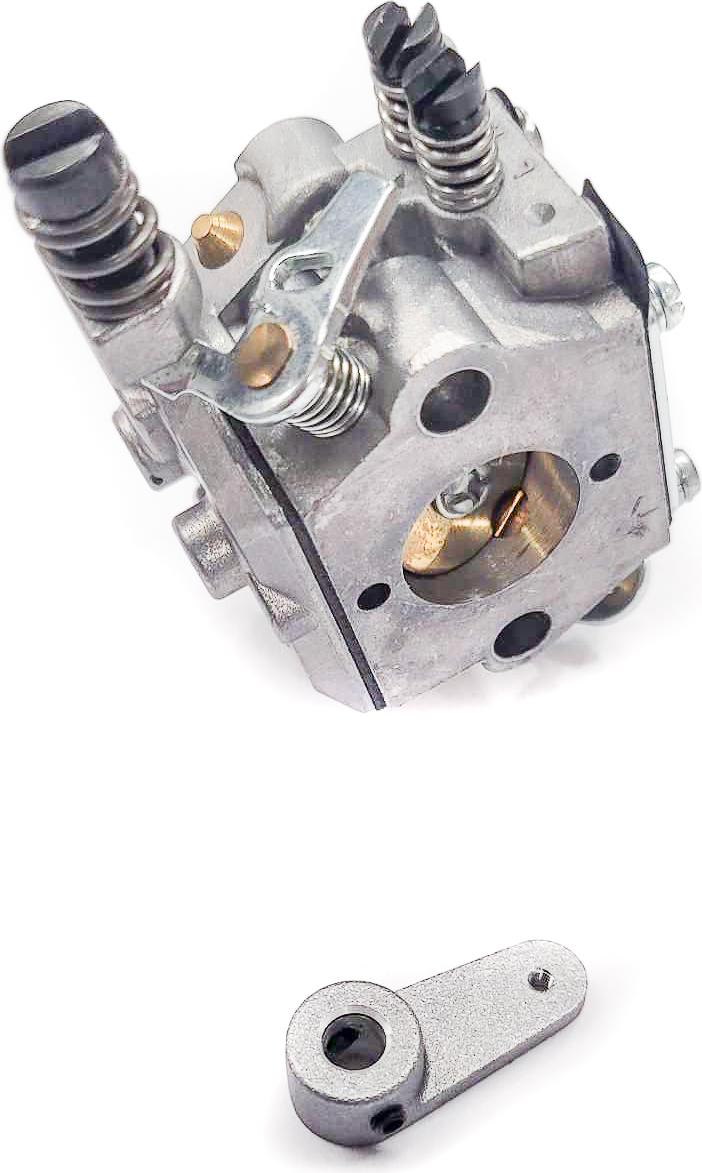

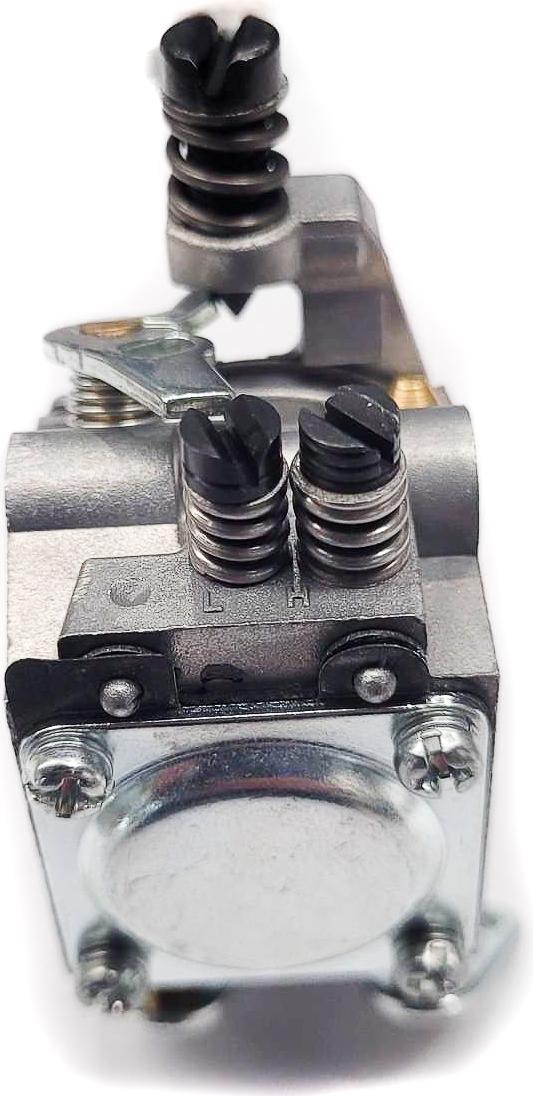

 This is the Complete Carburetor for the DLE-55cc Gasoline Engine, DLEG0055.

FEATURES: Fully assembled and ready to install

INCLUDES: Complete Carburetor for the DLE-55cc Gas Engine

SPECS: Carburetor Settings;
Low Speed Needle: 1.25 turns open from fully closed
High Speed Needle: 1.5 turns open from fully closed
Adjust high speed needle to peak RPM. If the engine slows or dies,
the high speed mixture is too lean.
Adjust low speed needle for a smooth idle and reliable transition to
high throttle. If engine dies when throttle is advanced, the
mixture is too lean. If engine stumbles when throttle is advanced,
the mixture is too rich.

jxs 08/07/13
