DLE502007
DL-50/55 Muffler
By DL ENGINES
Discontinued
Click to Enlarge
click to enlarge

More like this... Replacement Motor Parts
But only from... DL ENGINES


 Inventory Status Legend
Stock availability for on-line ordering
0
$48.99
Warehouse ?
Stock availability for pick up
0
$48.99
Warehouse ?
0
$48.99
Store - Charlottetown ?
0
$48.99
Store - Edmonton ?
0
$48.99
Store - Mississauga ?
0
$48.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
PRODUCT RESOURCES
VENDOR TECHNOTES

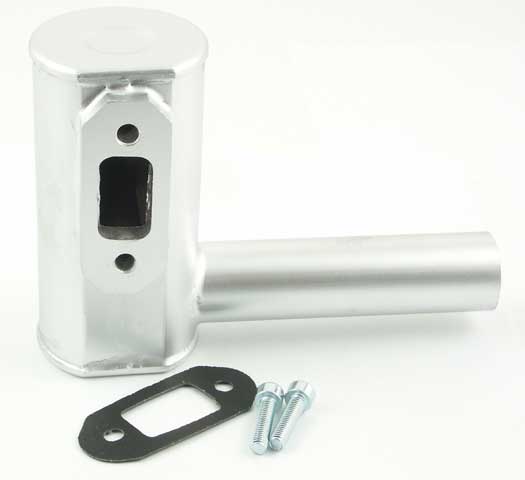

      This is the Muffler for use on the DLE DL-50 and DL-55 Gas Engines.

FEATURES: Aluminum construction

INCLUDES: One Muffler
One Gasket
Two 5x20mm Cap Head Bolts

REQUIRES: Installation on the engine

SPECS: Length: 145mm (5.7")
Width: 105mm (4")
Height: 54mm (2")
Length of Exhaust Pipe: 95mm (3.7")
Diameter of Exhaust Pipe: 25mm (0.98")
Distance from center of Mounting Holes: 1.565" (39.75mm)
