DLE170-G17

Carburetor Complete DLE-170

Product Info
DL ENGINES

DLE170-G17
Carburetor Complete DLE-170
By DL ENGINES
$189.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Replacement Motor Parts
But only from... DL ENGINES


 Inventory Status Legend
Stock availability for on-line ordering
0
$189.99
Warehouse ?
Stock availability for pick up
0
$189.99
Warehouse ?
0
$189.99
Store - Charlottetown ?
0
$189.99
Store - Edmonton ?
0
$189.99
Store - Mississauga ?
0
$189.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
VENDOR TECHNOTES

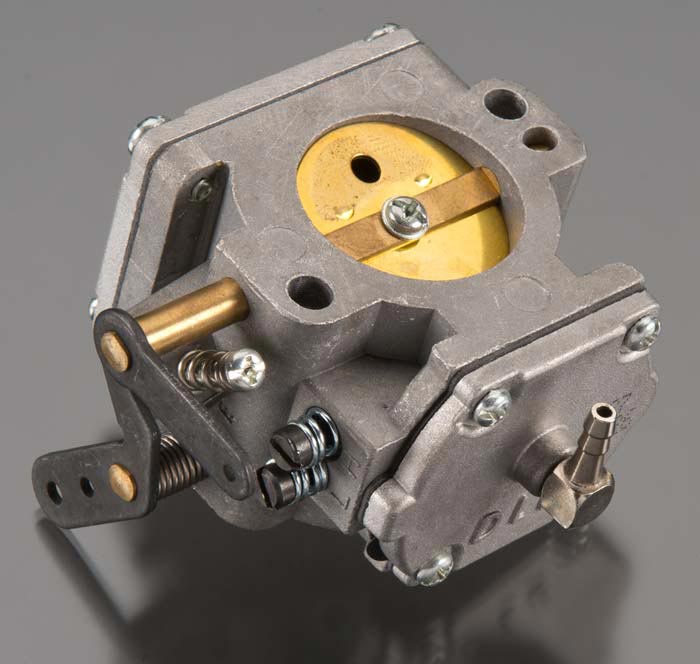

 This is the Complete Carburetor for the DLE-170cc Gasoline Engine, DLEG0170.

FEATURES: Fully assembled and ready to install

INCLUDES: Complete Carburetor (key #8) for the DLE-170cc Gas Engine

SPECS: Carburetor Settings: Carburetor was preset from the factory and only
requires small incremental adjustments.
Low Speed Needle: 1 turn open
High Speed Needle: 1 turn open
Adjust high speed needle to peak RPM. If the engine slows or dies,
the high speed mixture is too lean.
Adjust low speed needle for a smooth idle and reliable transition to
high throttle. If engine dies when throttle is advanced, the
mixture is too lean. If engine stumbles when throttle is advanced,
the mixture is too rich.

jxs 08/07/13
ir/jxs
667300818171 0667300818171
DLEG1817
