DLE120-Y35

Engine Mount DLE-120

Product Info
DL ENGINES

DLE120-Y35
Engine Mount DLE-120
By DL ENGINES
$26.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Replacement Motor Parts
But only from... DL ENGINES


 Inventory Status Legend
Stock availability for on-line ordering
0
$26.99
Warehouse ?
Stock availability for pick up
0
$26.99
Warehouse ?
0
$26.99
Store - Charlottetown ?
0
$26.99
Store - Edmonton ?
0
$26.99
Store - Mississauga ?
0
$26.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
VENDOR TECHNOTES

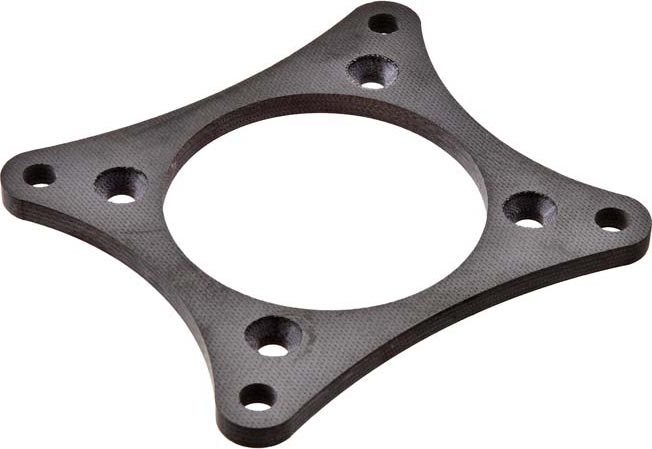

                      This is the Engine Mount for the
DLE 120cc Twin Cylinder Gasoline Engine, DLEG0120.

FEATURES: Layered carbon fiber construction
Fastens to crankcase, and with the standoffs holds the engine to the
firewall of the airplane

INCLUDES: Engine Mount for the DLE 120cc Twin Cylinder Gasoline Engine

SPECS: Distance between center of Outer Holes: 2.8" (72mm) vertical
Distance between center of Outer Holes: 3.25" (82.5mm) horizontal
Distance between center of Inner Holes: 1.9" (48.9mm) vertical
Distance between center of Inner Holes: 2.3" (59mm) horizontal
Thickness: 0.21" (5.3mm)
