DLE120-Y32

Muffler Right 2-Hole DLE-120

Product Info
DL ENGINES

DLE120-Y32
Muffler Right 2-Hole DLE-120
By DL ENGINES
$46.99 CAD
Order Quantity:
Click to Enlarge
click to enlarge

More like this... Replacement Motor Parts
But only from... DL ENGINES
All items from... DL ENGINES


 Inventory Status Legend
StockStock availability for on-line ordering
0
$46.99
Warehouse ?
StockStock availability for pick up
0
$46.99
Warehouse ?
0
$46.99
Store - Charlottetown ?
0
$46.99
Store - Edmonton ?
0
$46.99
Store - Mississauga ?
0
$46.99
Store - Ottawa ?
This live feed information is to be used as a general guide to current inventory. There is no guarantee of availablility.
VENDOR TECHNOTES

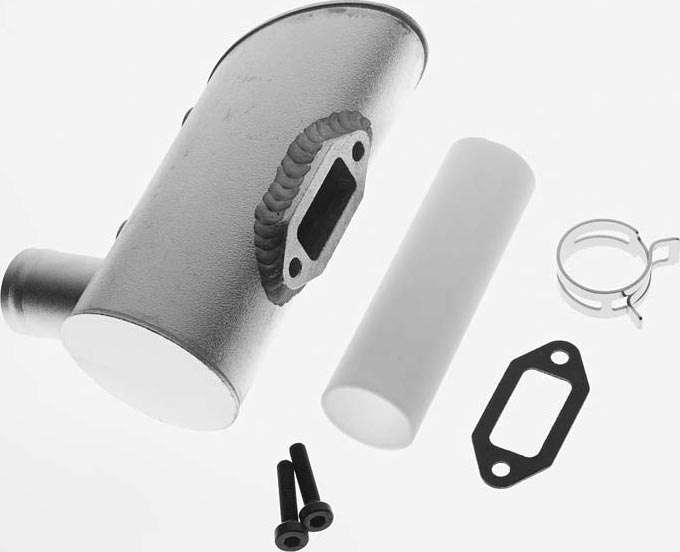

     This is the 2-Hole Right Muffler for the DLE-120cc Engine, DLEG0120.

FEATURES: Aluminum construction
Plastic muffler extension directs exhaust away from fuselage

INCLUDES: 2-Hole Right Muffler
Metal and Fiber Gasket
Two 4.5x22mm Socket Head Cap Screws
Muffler Extension with Compression Clamp

SPECS: Distance between Mounting Hole Centers: 1.65" (42mm)
Muffler Body Diameter: 2.15" (54mm)
Muffler Body Length: 5" (127mm)
Outlet Pipe Diameter: 0.98" (25mm)
Outlet Pipe Length: 1.2" (27.5mm)
Muffler Extension Length: 3.75" (95.2mm)
Muffler Extension Diameter: 1.10" (28mm)

jxs 05/15/14
ir/jxs
667300813329 0667300813329
DLEG1332
