The Mamba X represents the latest and greatest in Castle Creations Inc. ESC technology. Originally designed to overpower 1:10th scale buggies and trucks, the ROAR APPROVED Mamba X also delivers amazing race capabilities for 1:8th scale eBuggy. After being extensively race-tested by Castle Creations' Lead Mechanical Engineer and Team Driver, Taylor James - the Mamba X has been approved for eBuggy racing with two of our most popular 15 Series Motors.
This ROAR APPROVED combo is a Mamba X ESC and 1512 1.5Y 1800kv motor for lighter 1/8th scale applications. Normally this motor is paired with our 1/8th scale Mamba Monster X ESC; but if you need to save some weight or need a smaller footprint, the Mamba X is more than capable of running this motor. This setup is recommended for 3s or 4s use in a vehicle weighing less than ~9lbs and geared for no more than ~45 MPH. If you have a heavier vehicle, looking for more speed or just want to beat the ever loving snot out of your vehicle we would recommend picking up the Mamba Monster X combo (CCR010014505).
ESC FEATURES:
ESC voltage range 2S-6S
Waterproof
8A Adjustable BEC (5.25V-8.0V)
Data-logging
Rugged CNC Aluminum Case
Castle Link Programming Support
Convenient Transmitter Programming
Auxiliary Wire Functionality for "on-the-fly" adjustments
SmartSenseTechnology
Integrated Capacitors
Removable 30mm Cooling Fan
Integrated 4mm Bullet Connectors
12 AWG Power Wires
Waterproof Switch
Audible Alerts and LED Alerts for easy diagnoses of common issues
ROAR Certified and RECON G6 Certified ESC
MOTOR FEATURES:
4-POLE 12-SLOT Rebuildable Design
QUIETSENSE Technology
High-Performance 0.2mm Steel Lamination Stacked Stator
High-Strength, 180° C Grade, Neodymium Sintered Magnets
210mm length Sensor Wire
Silicone coated sensor board
Oversized NMB Bearings
M3 and M @ 25mm Mounting Hole
4mm male Castle Bullet Connectors
ROAR Standard Sensor Port and Labeled Connections
High-Strength Kevlar Wrap
Oversized, Low-Resistance, Gold-Plated Solder Tabs
SmartSense Technology

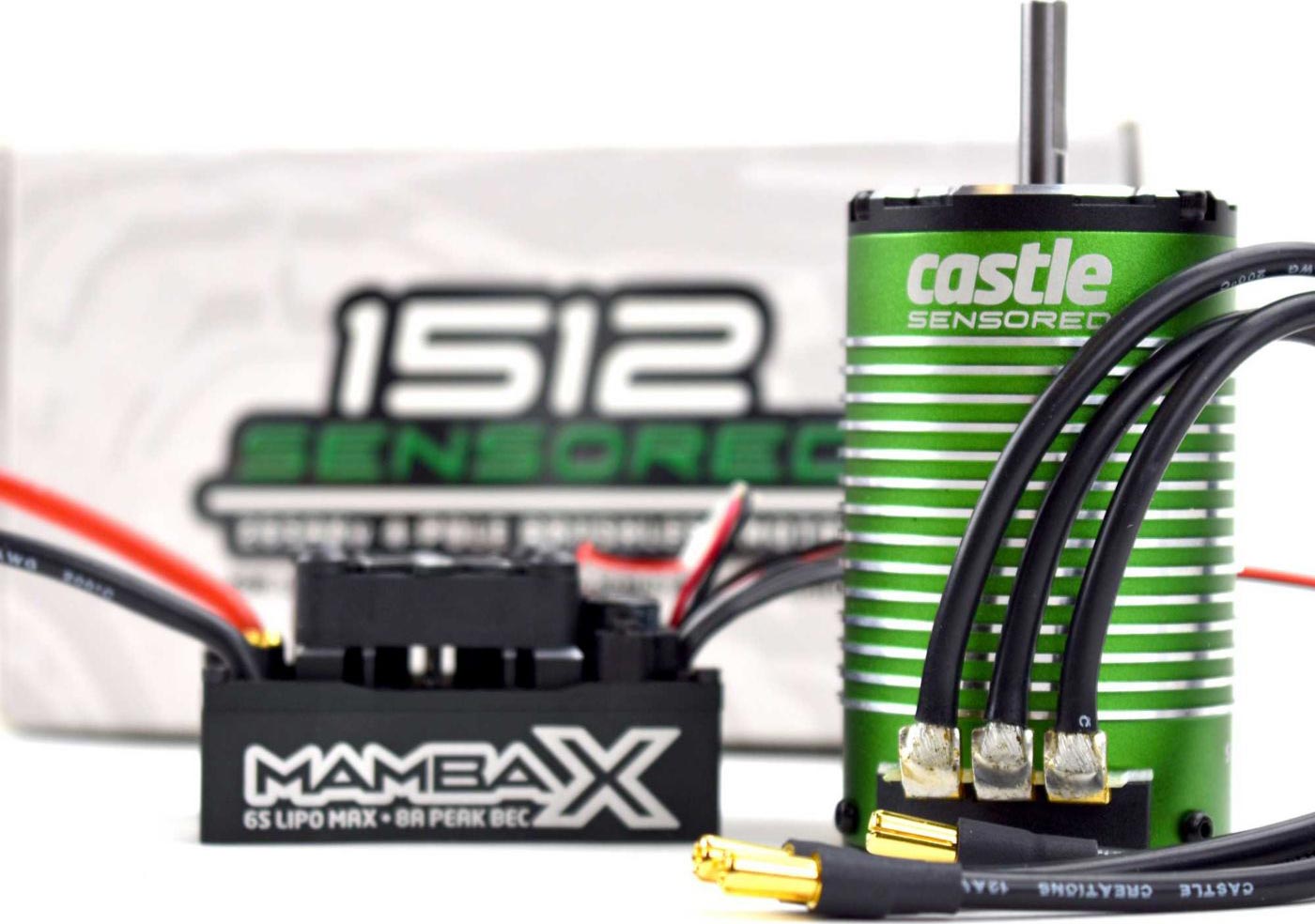

The MAMBA X W/1512-1800KV SENSORED 1:8 E-BUGGY EDITION COMBO Includes:
MAMBA X ESC with 4.0mm Male Bullets on 12AWG Wire
Sensor Harness
1512-1800Kv Sensored Motor with Sensor Wire
MAMBA Logo Sheet
Gearing Chart for Castle Motors
Drivers Ed Guide
Quick Start Guide
