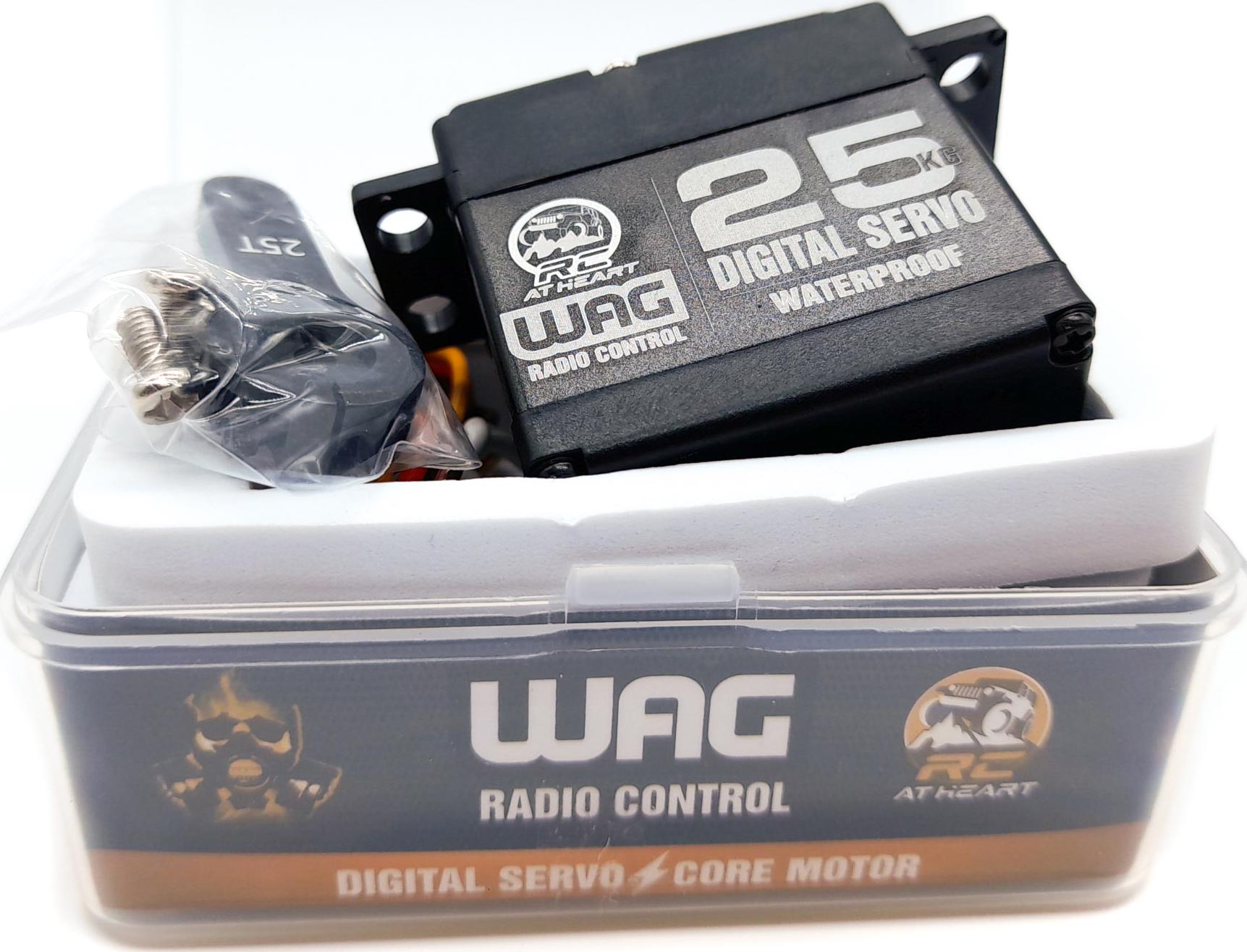

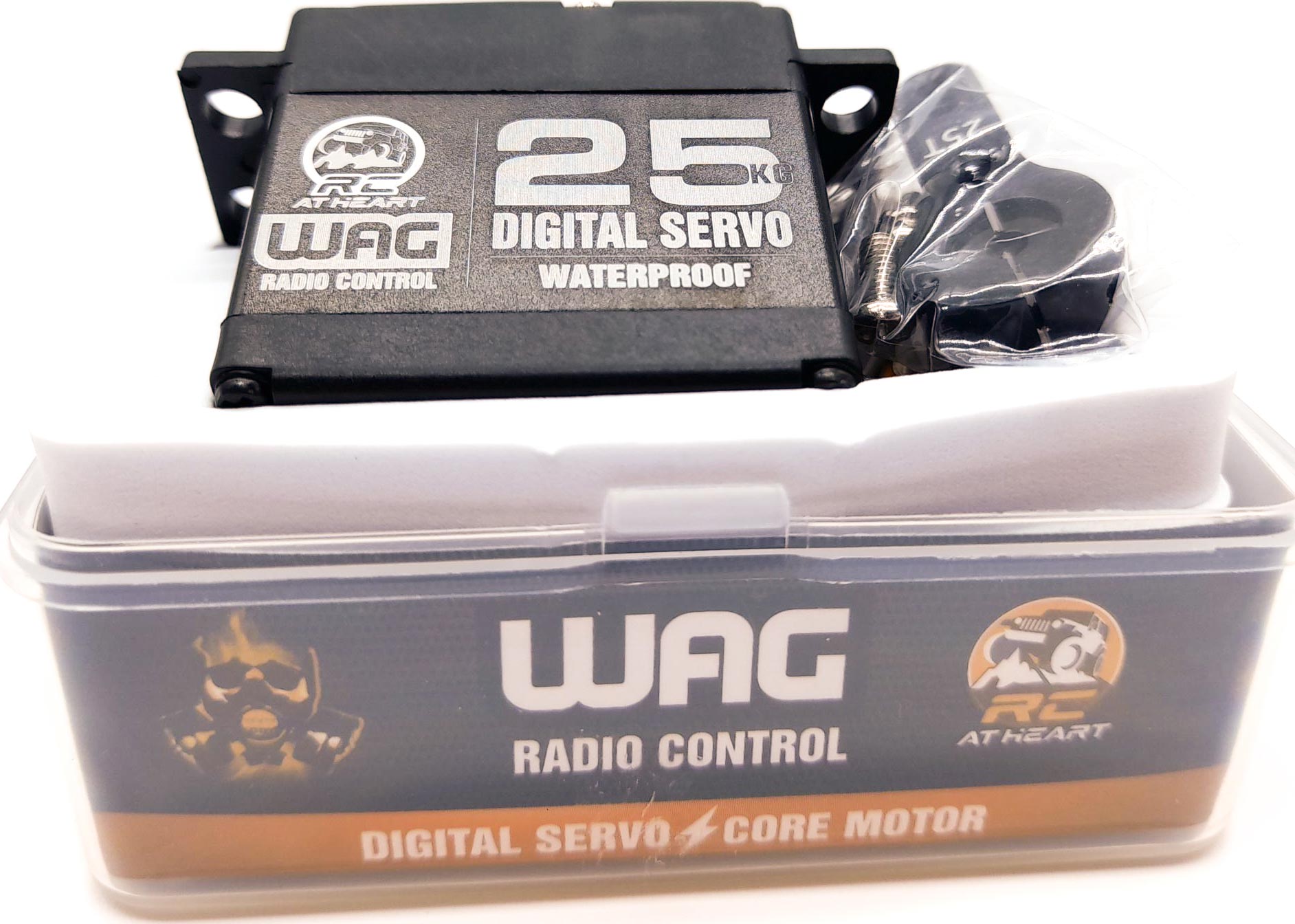

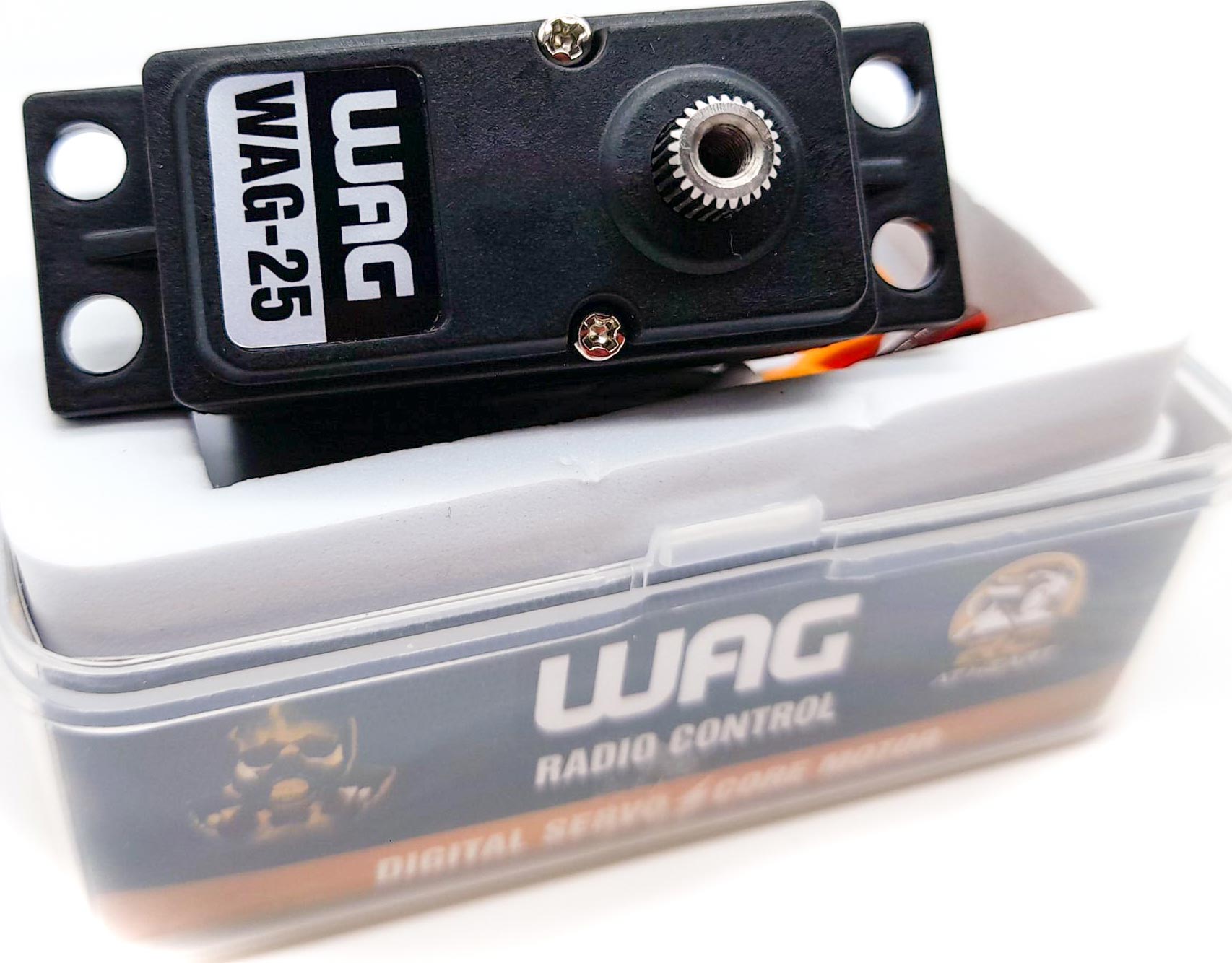

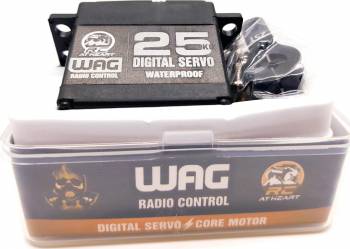

WAG Digital Waterproof Metal Gear Servo 25kg
|
click to enlarge
|
More like this... Servos Digital
But only from... WAG RADIO CONTROL
All items from... WAG RADIO CONTROL
But only from... WAG RADIO CONTROL
All items from... WAG RADIO CONTROL
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
FEATURES
Specifications:
- Storage Temperature -30°C ± 80°C
- Operating Temperature Range -20°C ± 60°C
- Secure Performance And Certificate EMC & ROHS
- Operating Voltage 6V 7.4V
- No Load Speed 0.185sec/60° (54rpm) 0.151sec/60° (66rpm)
- Running Current (no load) 100mA 120mA
- Stall Torque (at lock) 20.5kg / cm (285.19oz/in) 25kg / cm (347.79oz/in)
- Stall Current (at lock) 3.0A 3.5A
- Idle Current (stopped) 6mA 6mA
- Input Voltage 4V-8.4V
- Rated Current 1000mA 1200mA

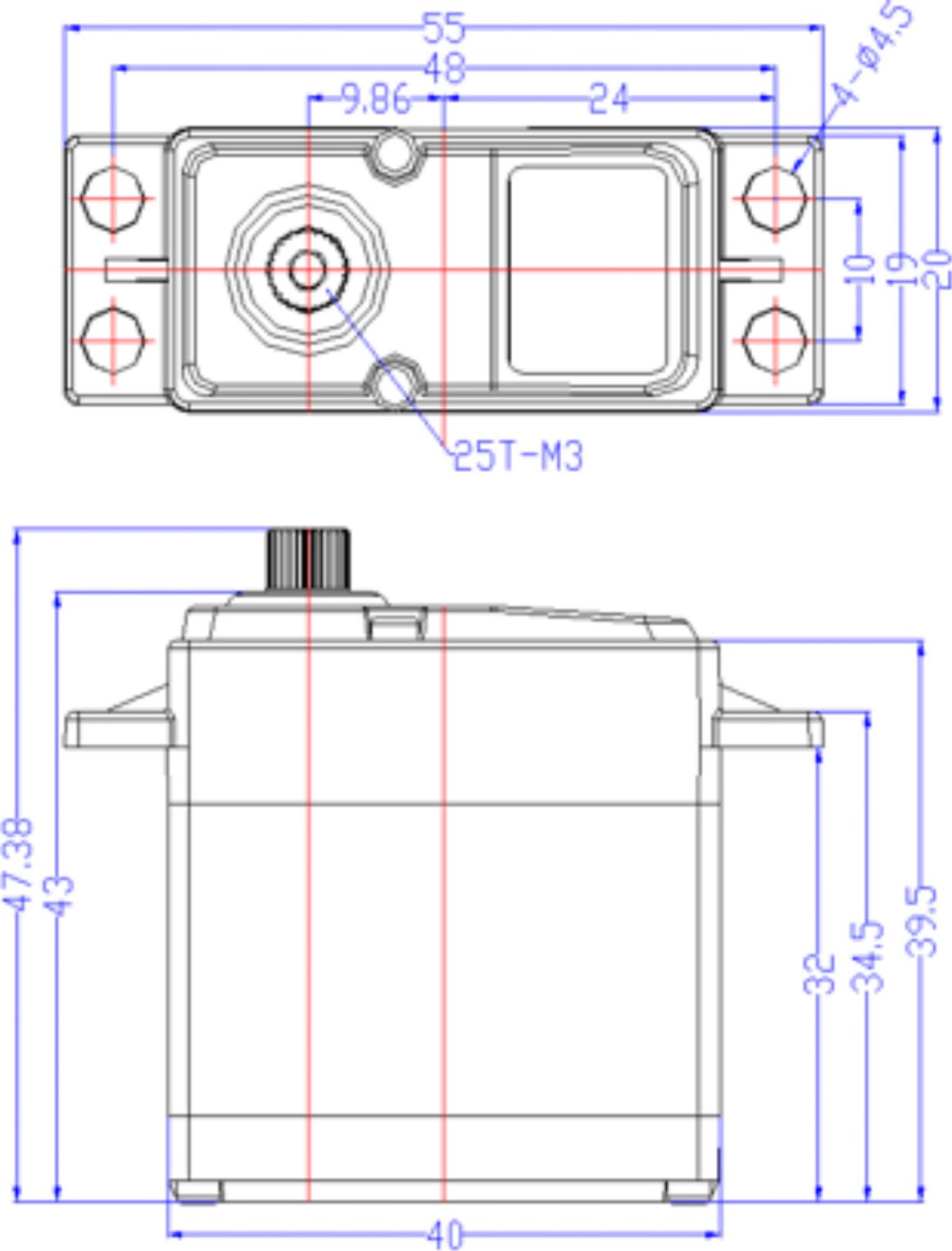

- Size 55x20x43
- Case Material PA+Aluminium
- Gear Material Steel
- Horn Type 25T/5.9mm
- Motor Core Motor
- Operating Travel 180°
- Waterproof Performance IP54
- Weight 67g
