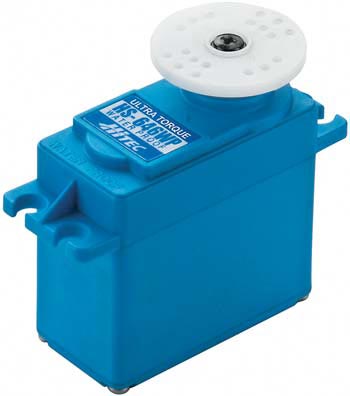

HS-646WP Hi Voltage Hi Torque Analog Waterproof Servo 0.17/161oz
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
|
|
||||
 |
||||
|
||||
 |
|
|
|
click to enlarge
|
StockStock availability for on-line ordering
StockStock availability for pick up
This live feed
information is to be used as a general guide to current inventory. There is no guarantee of
availability.
Best selling related parts, options and upgrades...
|
|||||||||||||
SPECIFICATIONS
24 Tooth
Output Spline:
42 mm
Length:
21 mm
Width:
40 mm
Height:
60 g
Weight:
Metal
Geartrain:
6.0 - 7.4 v
Voltage Range:
9.6 kg-cm (133 oz-in)
Torque @ 6.0V:
0.20 sec/60°
Speed @ 6.0V:
11.6 kg-cm (161 oz-in)
Torque @ 7.4V:
0.17 sec/60°
Speed @ 7.4V:
FEATURES
FEATURES
Waterproof-industry first IP67 rating, ranking these as among the
most durable and reliable servos for wet conditions
3-pole motor
Dual ball bearings
INCLUDES
Hitec HS-646WP Servo with 1.02" (26mm) Single Arm, 2.3" (59mm) Double
Arm, 1.6" (42mm) Four Point Horn, 0.98" (25mm) Single Arm and
Mounting Hardware
